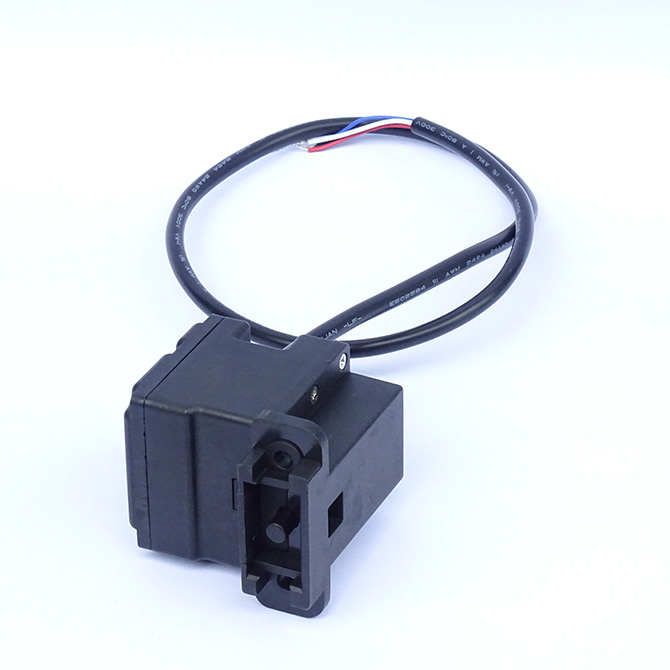

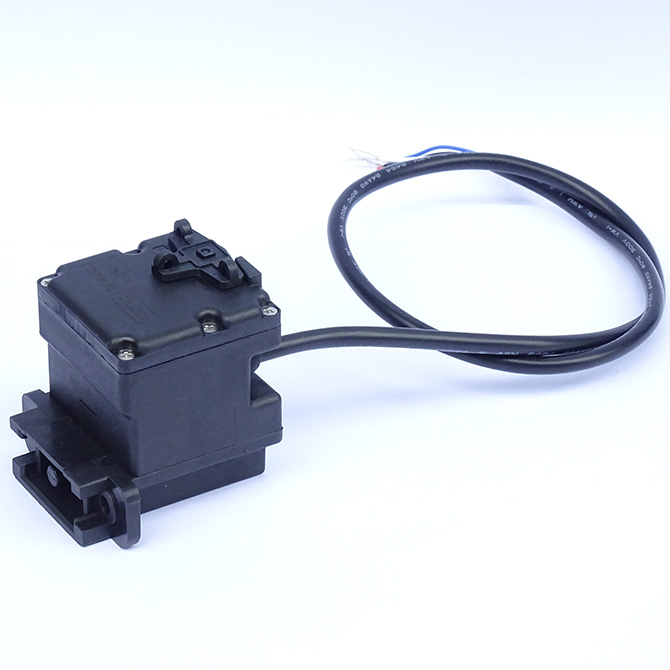

Electronic Actuator-DNL301-V1
Electronic Actuator-DNL301-V1
Electronic Actuator-DNL301-V1
Electronic Actuator-DNL301-V1
Electronic Actuator-DNL301-V1
Electronic Actuator-DNL301-V1

Electronic Actuator-DNL301-V1

  • Current: ≤200mA(12V)

  • Rated voltage: 12V; Voltage range: 10.5V~13.5V;

  • Insulation strength: ≥ 100MΩ, 600Vd

  • Degree protection provided by enclosure: IP55

  • Drive time: ≤300ms(12v)

  • Manual unlocking pull: ≤5N

  • Maximum power on time: 3s (No long time conduction)

  • Electronical life: >30000times

  • Operating temperature: -30℃ ~+ 85℃

KC

KC

CE

CE

ENEC

ENEC

ROSH

ROHS

UL

UL

TUV

TUV

Product Details

For the DNL301-V1 Electronic Actuator

Specifications Movement

1. Features

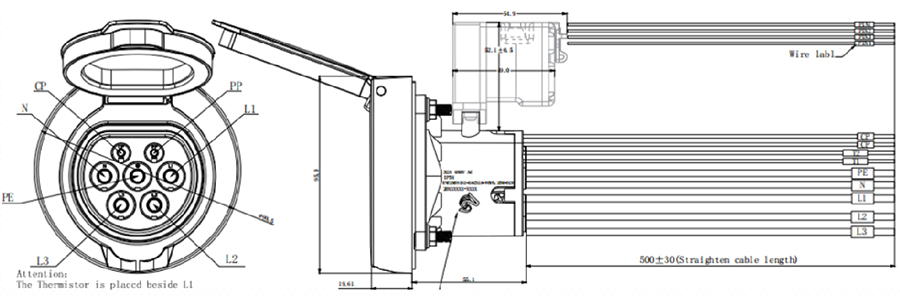

Motor drive, gear box structure, trigger signal switch, simple distinguish lock and unlock state; Applicable to European standard charging pile interface locking device;

2. Electrical performance

Current≤200mA(12V)
Rated voltage12V; Voltage range: 10.5V~13.5V;
Insulation strength≥ 100MΩ, 600Vd
Degree protection provided by enclosureIP55
Drive time≤300ms(12v)
Manual unlocking pull≤5N
Maximum power on time3s (No long time conduction)
Electronical life>30000times
Operating temperature-30℃ ~+ 85℃

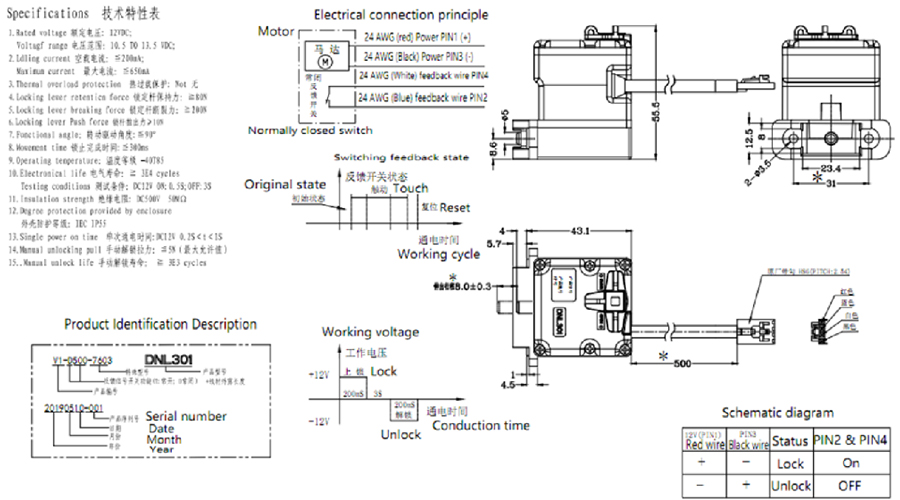

3. Model selection and the standard wiring

Switch wire and motor wire use 1007-20AWG wire harness, 4 PIN colour.
