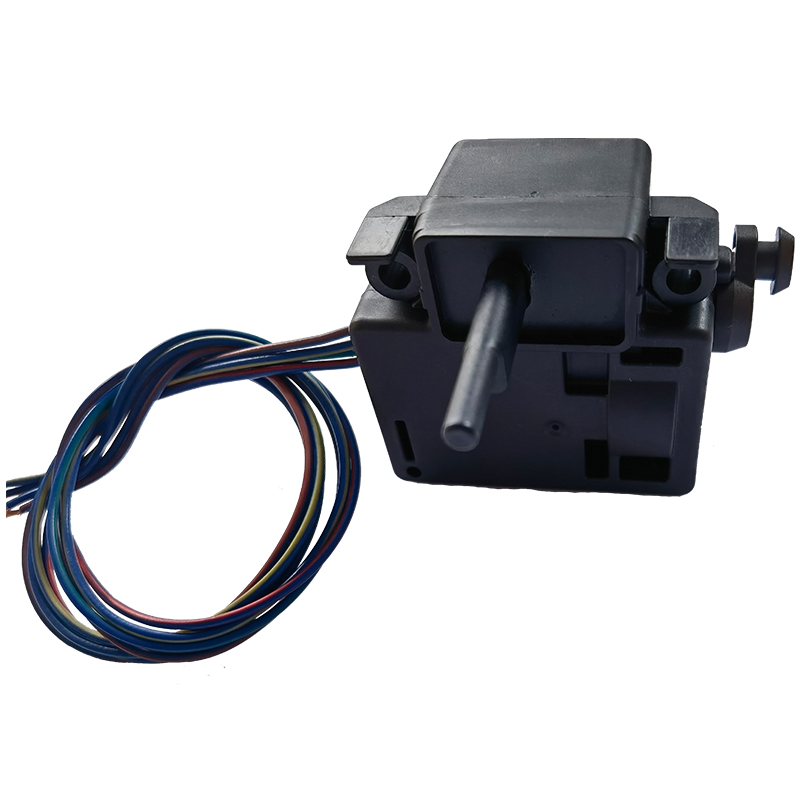

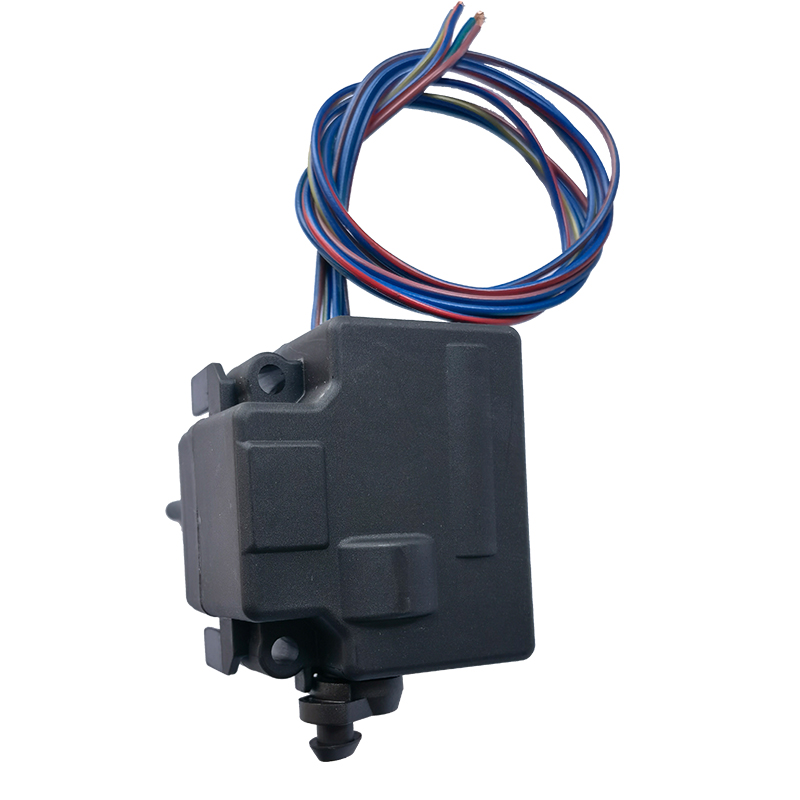

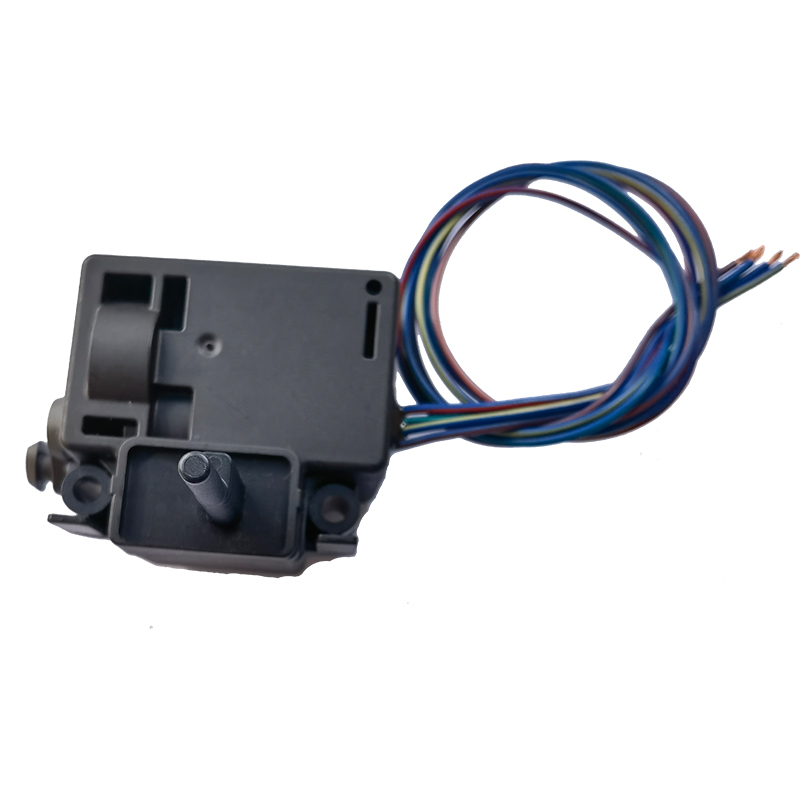

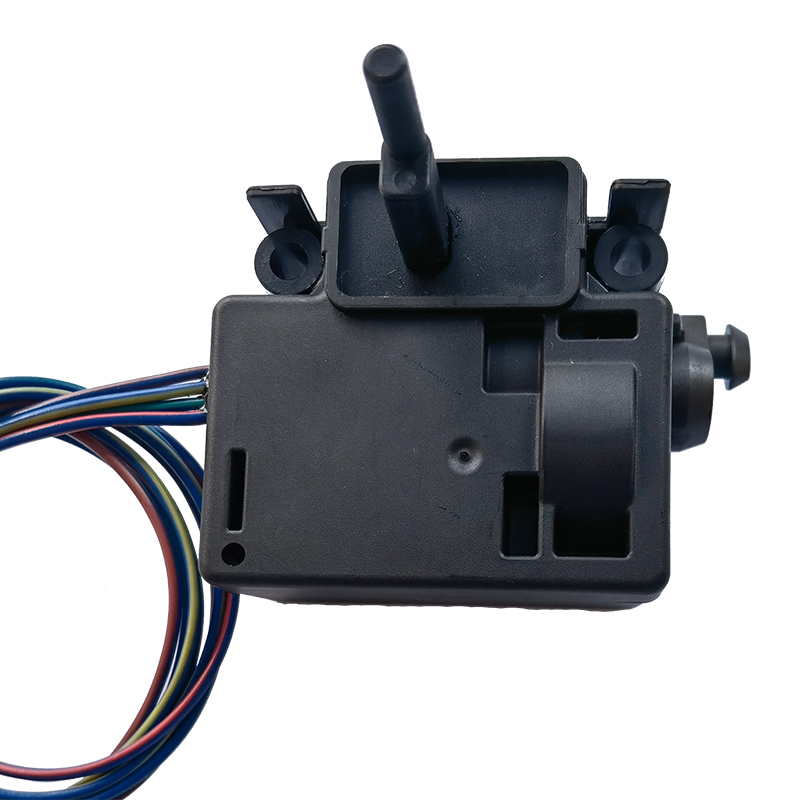

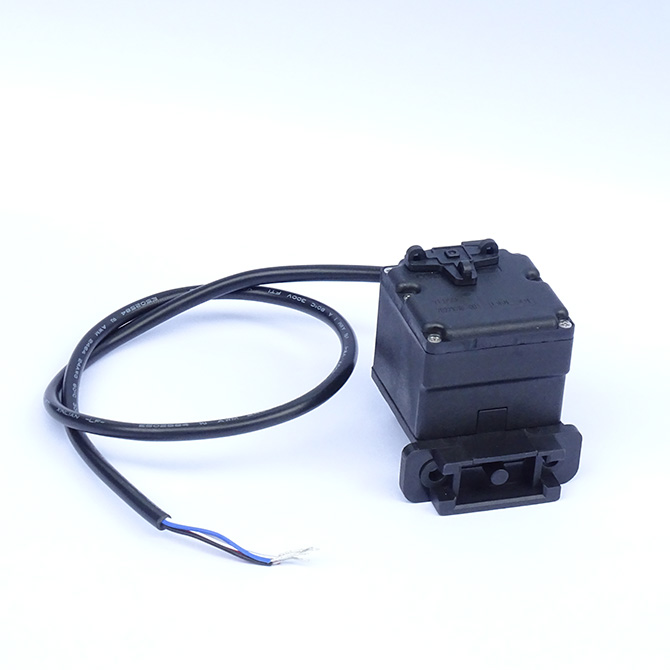

This specification is applied to DNL501B electronic actuator used for EV charging sockets.
Specifications Movement
1. Features
Instantaneous power supply mode, low energy loss. Small size, suitable for small space installation.
2. Mechanical properties
Mechanical life: Operating cycle>60000 times
3. Environmental Performance
Operating temperature: -40℃ ~+ 85℃
4. Applied materials
Case Material: Thermoplastic, flame retardant grade UL94HB.
5. Electrical performance
| Current | ≤0.5A(12V) |
| Rated voltage | 12V |
| Voltagf range | 9V～16V |
| Insulation strength | ≥ 100MΩ, 600Vd |
| Degree protection provided by enclosure | IP67 |
| Stall current | ≤1.5A(12V) |
| Drive time | ≤600ms(12v) |
| Locking lever retention force | ≥ 50N |
| Locking lever push force | >40N (12V) |
| Manual unlocking pull | ≤70N |
6. Model selection and the standard wiring
Switch wire and motor wire use AVSSH 0.5F wire harness, 4 PIN colour.

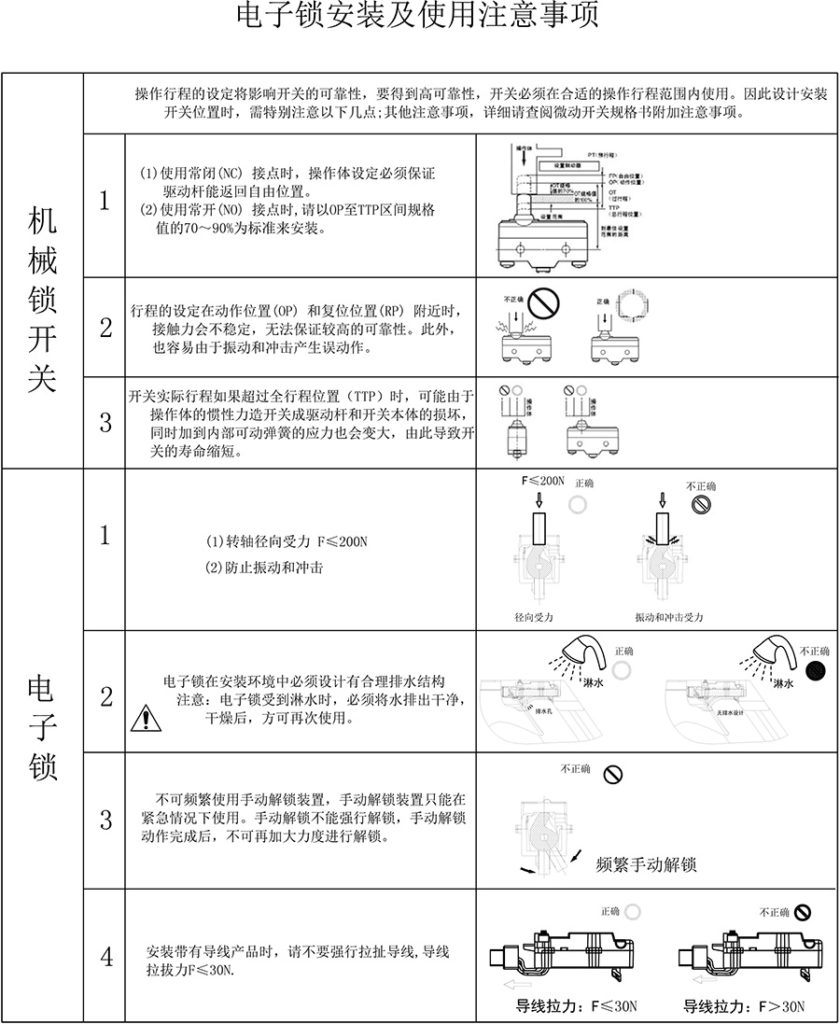

NOTE: Wires should not be dragged.
