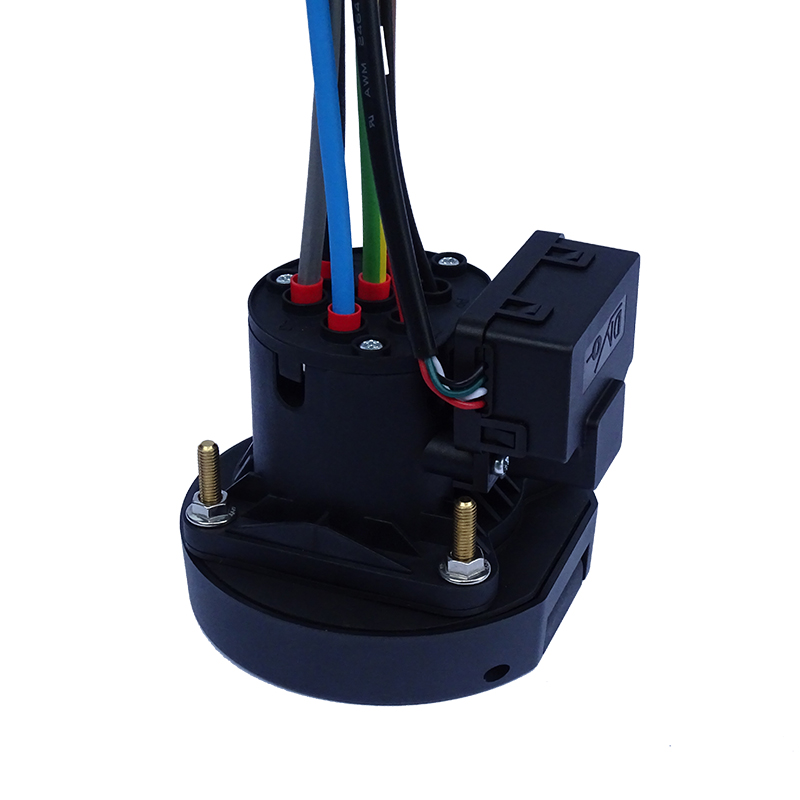

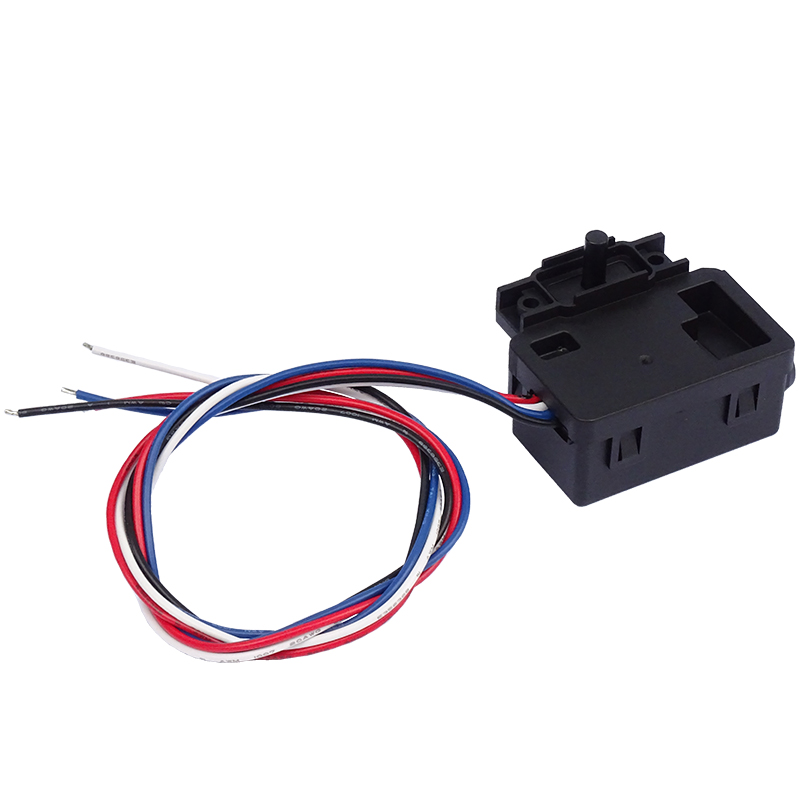

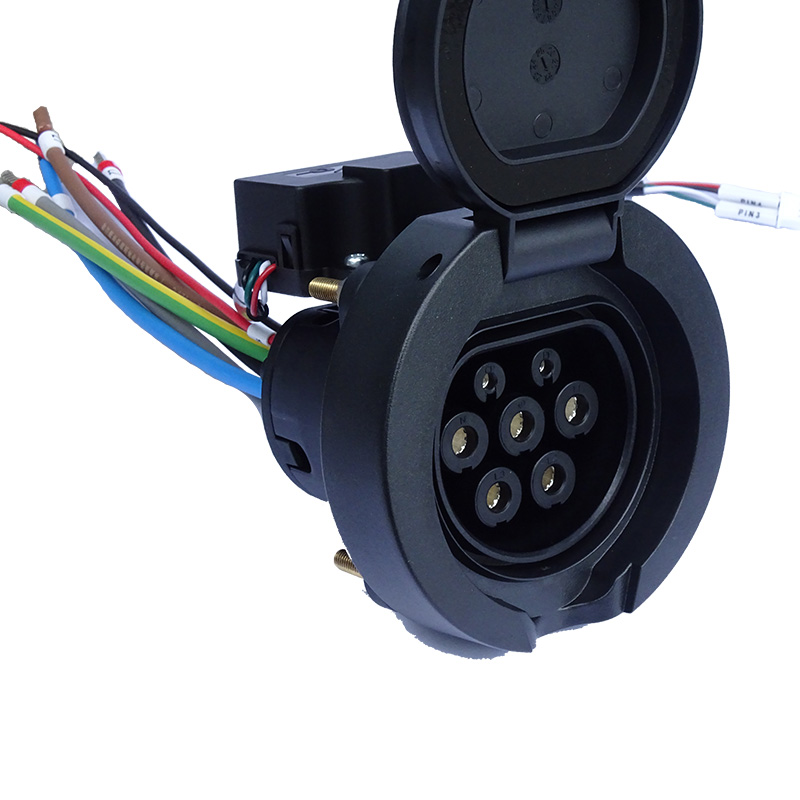

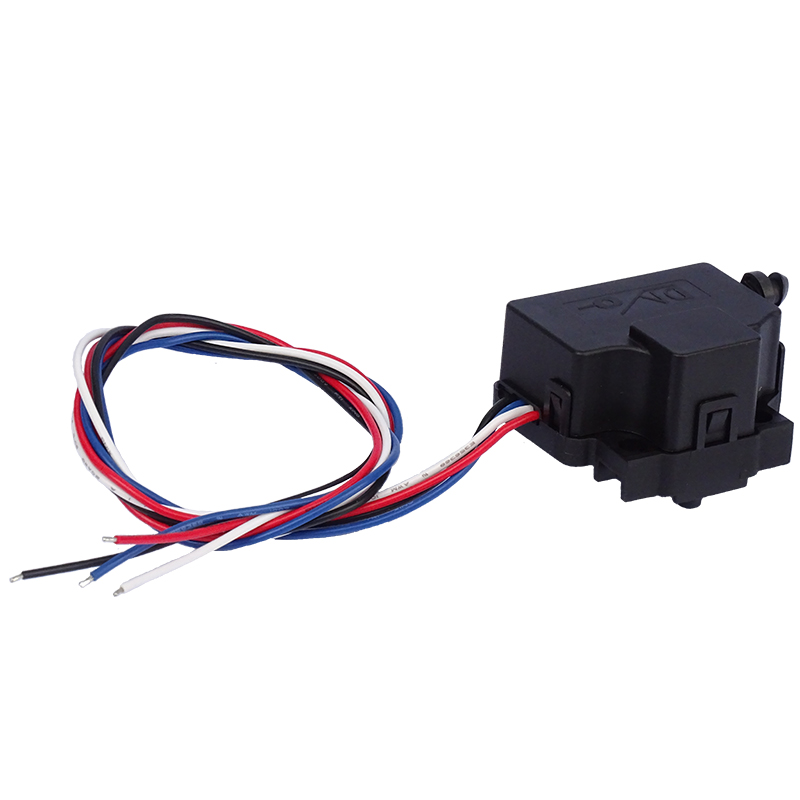

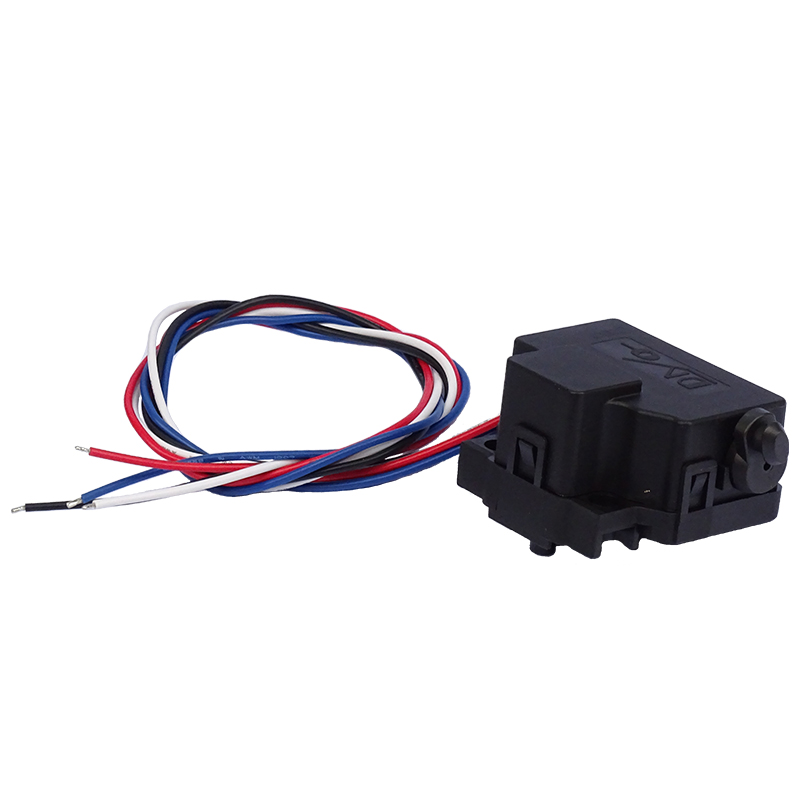

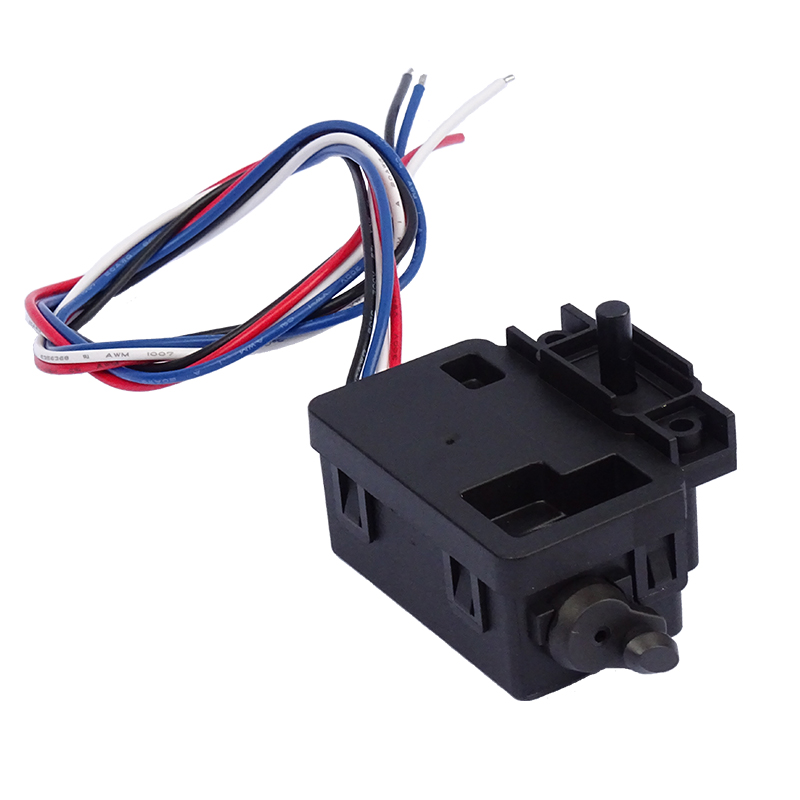

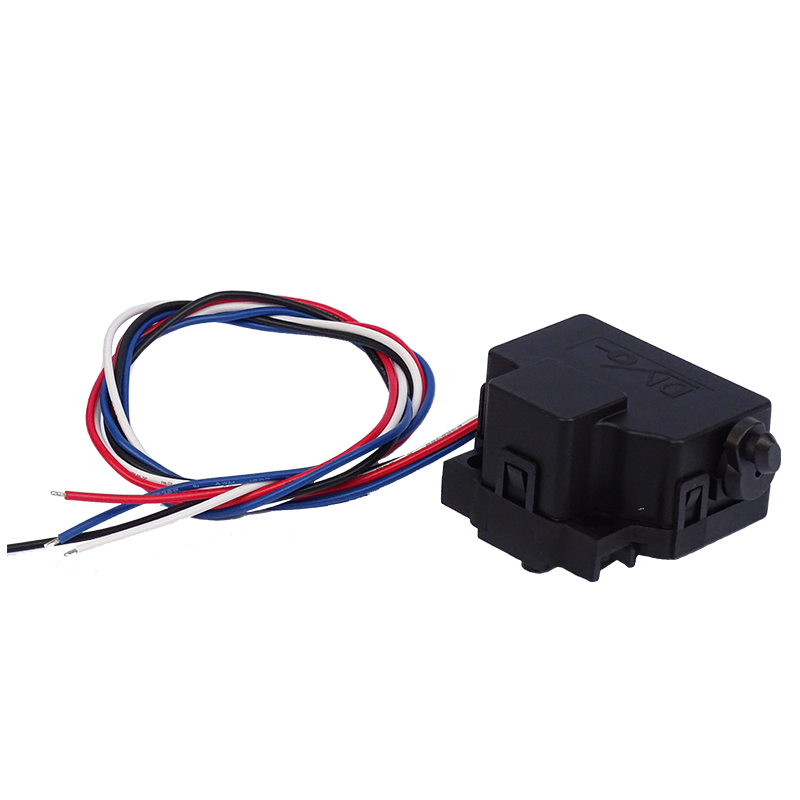

This specification is applied to DNL501C electronic actuator used for EV charging sockets.
Specifications Movement
1. Features
Instantaneous power supply mode, low energy loss. Small size, suitable for small space installation.
2. Mechanical properties
Mechanical life: Operating cycle>60000 times
3. Environmental Performance
Operating temperature: -40℃ ~+ 85℃
4. Applied materials
Case Material: Thermoplastic, flame retardant grade UL94HB.
5. Electrical performance
| Current | ≤0.5A(12V) |
| Rated voltage | 12V |
| Voltagf range | 9V～16V |
| Insulation strength | ≥ 100MΩ, 600Vd |
| Degree protection provided by enclosure | IP5K5 |
| Locking lever retention force | Voltage range |
| Manual unlocking pull | ≤30N |
6. Model selection and the standard wiring
Switch wire and motor wire use 1007-20AWG wire harness, 4 PIN colour.
NOTE: Wires should not be dragged.
