KW10 Micro Switch Series
KW10 Micro Switch Series

KW10 Micro Switch Series

  • Operating Speed: 0.1mm~1m/s (Related with actuator forms)

  • Operating Frequency: Mechanical 60 cycles/min; Electrical 25 cycles/min

  • Insulation Resistance: ≥100mΩ(500VDC)

  • Mechanical Life: ≥1,000,000 cycles

  • Electrical Life: ≥10,000 cycles

  • Weight: Approx.0.6g (No lever)

  • Safely Approvals: UL, CUL, TUV, ENEC, DEMKO, CE, EK, CQC

  • Application: Home appliance, audio video device, computer, office automation equipment, communication equipment, ect.

Note: To learn more parameters, please go to the details area below to download the parameter document.

KC

KC

CE

CE

ENEC

ENEC

ROSH

ROHS

UL

UL

TUV

TUV

Product Details

Action sensitive subminiature switch

  • 1. Mini-type, big current. Characteristics: small contact gap, quick action, high sensitivity and small operating travel.
  • 2. Long life.
  • 3. A variety of contact terminals.
  • 4. A variety of levers.
  • 5. Widely used in home appliances, audio video device, computer, office automation equipment, communication equipment, ect.

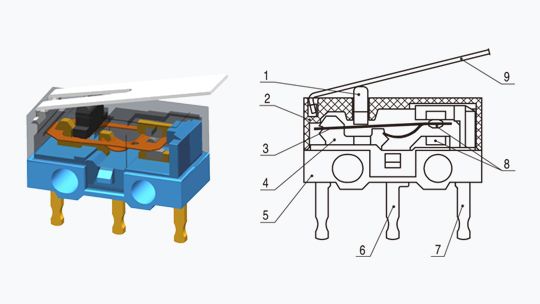

Internal configuration drawing

  • 1. Plunger
  • 2. Cover
  • 3. Moving piece
  • 4. Support
  • 5. Case
  • 6. NO terminal
  • 7. NC terminal
  • 8. Contact
  • 9. Lever

Technical characteristics

ItemValue
Operating Speed0.1mm~1m/s (Related with actuator forms)
Operating FrequencyMechanical 60 cycles/min; Electrical 25 cycles/min
Insulation Resistance≥100mΩ(500VDC)
Contact ResistanceOF>0.75N: ≤30mΩ (see note)
OF≤0.75N: ≤50mΩ (see note)
KW10-D, E, F type: ≤100mΩ(see note)
Test Voltage - Between terminals of the same polarityAC1000V, 50/60Hz, 1min
Test Voltage - Between current-carrying metal parts and ground(case), and between terminal and non-current-carrying metal partsAC1500V, 50/60Hz, 1min
Vibration Resistance10~55Hz, 1.5mm double amplitude
Shock ResistanceMalfunction: 300m/s² (approx.30G) max
LifeMechanical≥1,000,000 cycles
Electrical≥10,000 cycles
WeightApprox.0.6g (No lever)
Safely ApprocalsUL, CUL, TUV, ENEC, DEMKO, CE, EK, CQC
*Note: Refers to the operating force of no lever.

Various model combinations

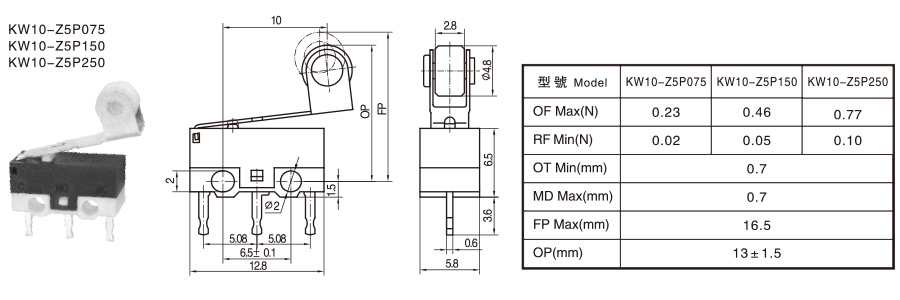

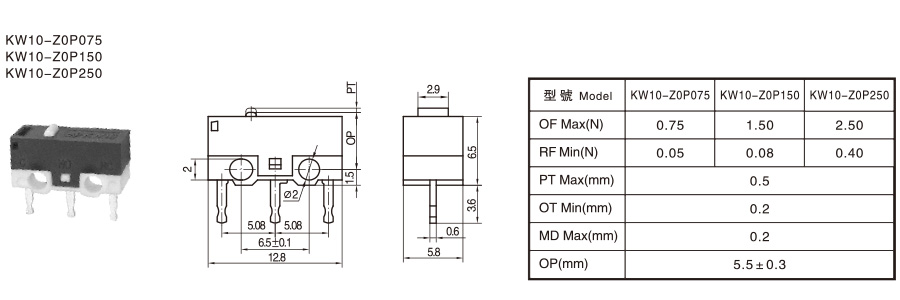

KW10-Z0P

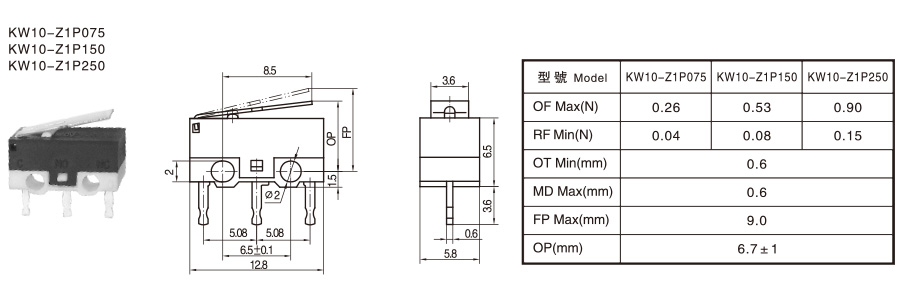

KW10-Z1P

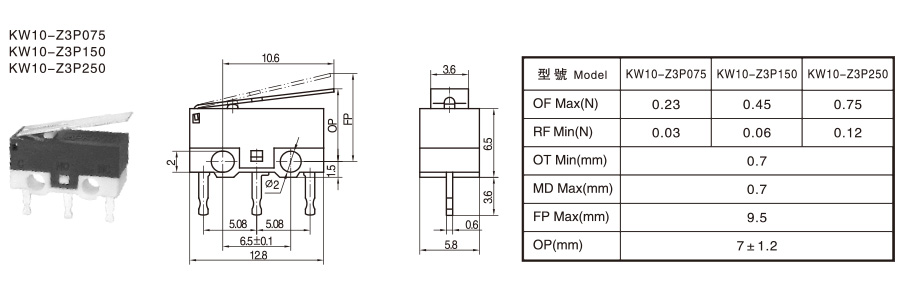

KW10-Z2P

KW10-Z3P

KW10-Z5P

KW10-Z6P

KW10-Z8P

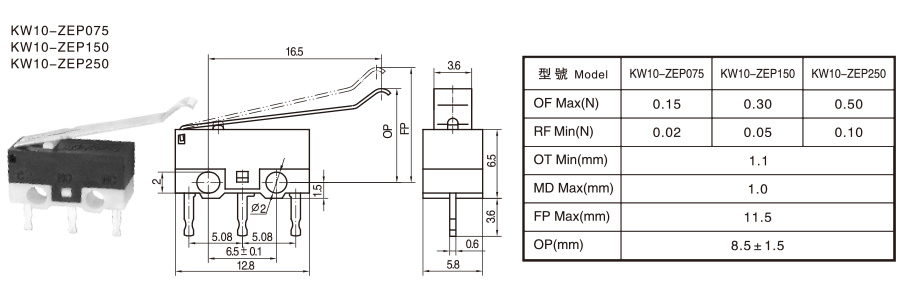

KW10-ZEP

KW10-ZBP

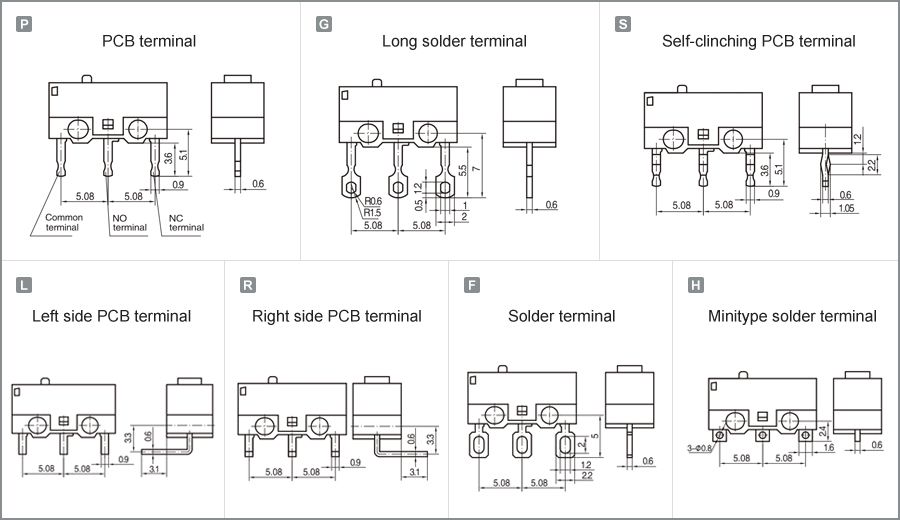

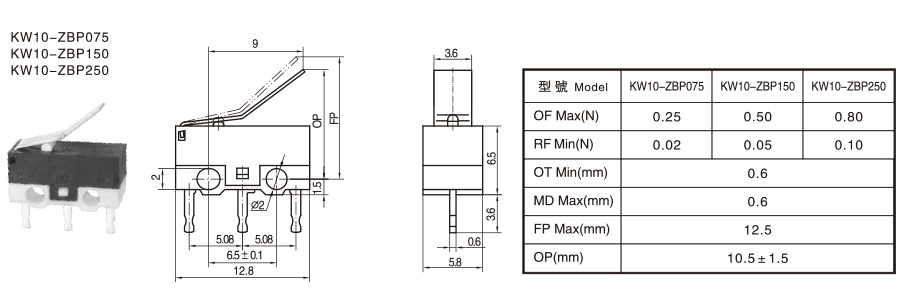

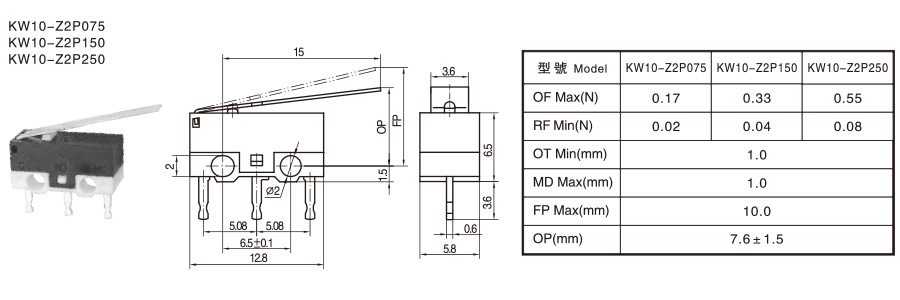

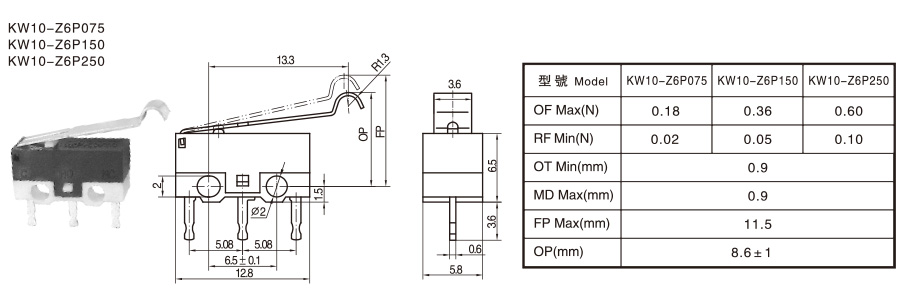

Terminal dimensions

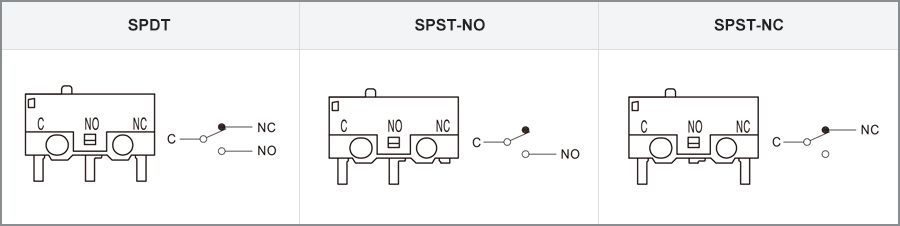

Circuit illustration
