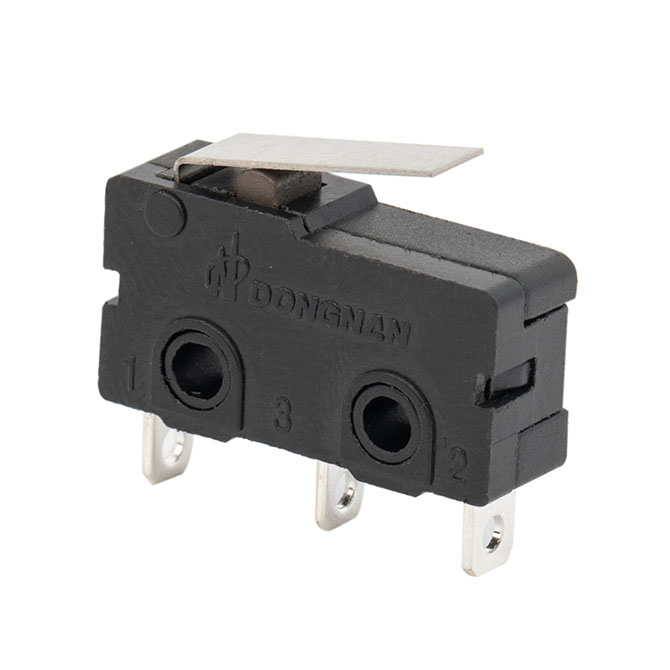

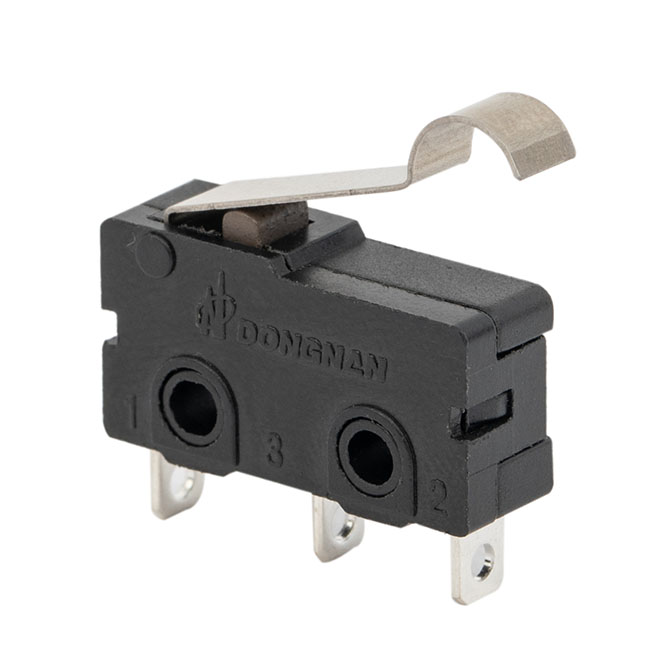

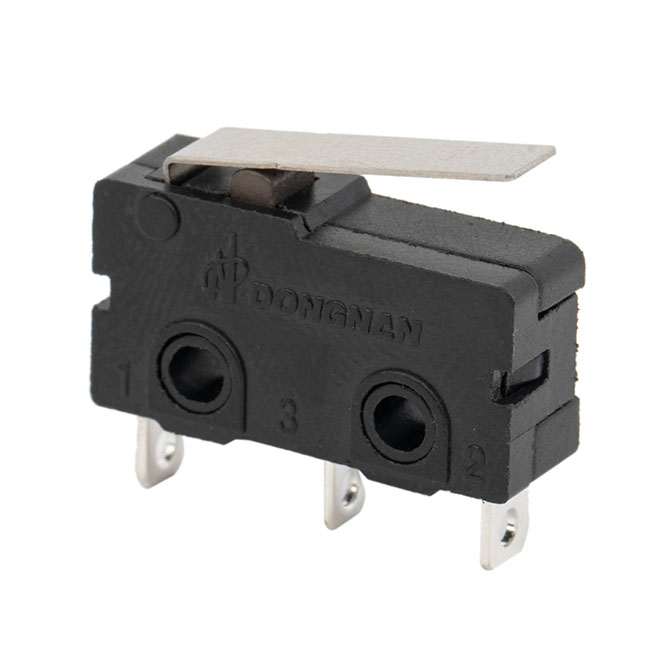

Safe, reliable basic switch
- 1. Tight configuration. Characteristics: small contact gap, quick action, high sensitivity and small operating travel.
- 2. Long life, high reliability.
- 3. A variety of contact terminals.
- 4. A variety of levers.
- 5. Widely used in home appliance, electronic equipment, automatic machine, communication equipment, car electron, apparatus and instrument ect.

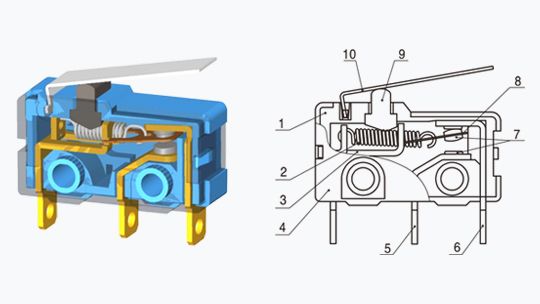

Internal configuration drawing
- 1. Case
- 2. Pull spring
- 3. Support
- 4. Cover
- 5. NO terminal
- 6. NC terminal
- 7. Contact
- 8. Moving piece
- 9. Plunger
- 10. Lever
Technical characteristics
| Item | Value |
|---|---|
| Operating Speed | 0.1mm~1m/s (Related with actuator forms) |
| Operating Frequency | Mechanical 60 cycles/min; Electrical 25 cycles/min |
| Insulation Resistance | ≥100mΩ(500VDC) |
| Contact Resistance | OF>0.5N: ≤30mΩ (see note) OF≤0.5N: ≤50mΩ (see note) |
| Test Voltage - Between terminals of the same polarity | AC1000V, 50/60Hz, 1min |
| Test Voltage - Between current-carrying metal parts and ground(case), and between terminal and non-current-carrying metal parts | AC1500V, 50/60Hz, 1min |
| Vibration Resistance | 10~55Hz, 1.5mm double amplitude |
| Shock Resistance | Destruction: OF>0.5N: 1000m/s² (approx.100G) max OF≤0.5N: 500m/s² (approx.50G) max Malfunction: OF>0.5N: 300m/s² (approx.30G) max OF≤0.5N: 200m/s² (approx.20G) max |
| Life | Mechanical≥1,000,000 cycles Electrical≥10,000 cycles Electrical≥50,000 cycles(TUV, CQC) |
| Weight | Approx.1.6g (No lever) |
| Safely Approcals | UL, CUL, VDE, TUV, SEMKO, ENEC, DEMKO, CE, EK, CQC |
Various model combinations

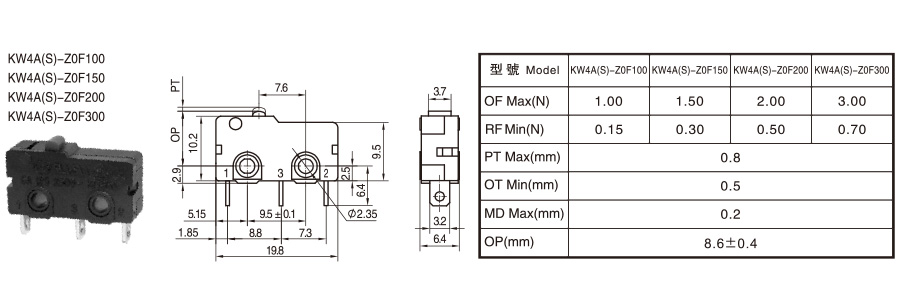

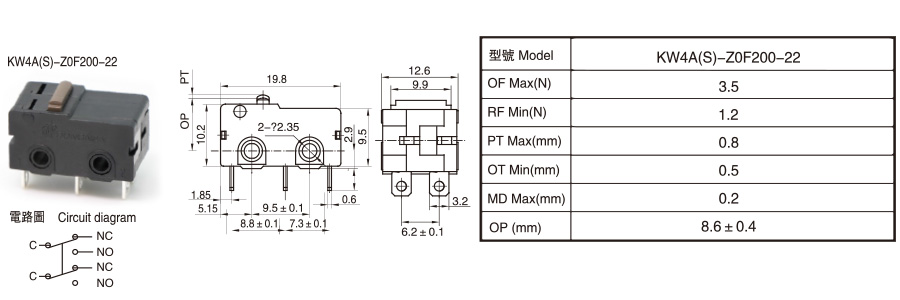

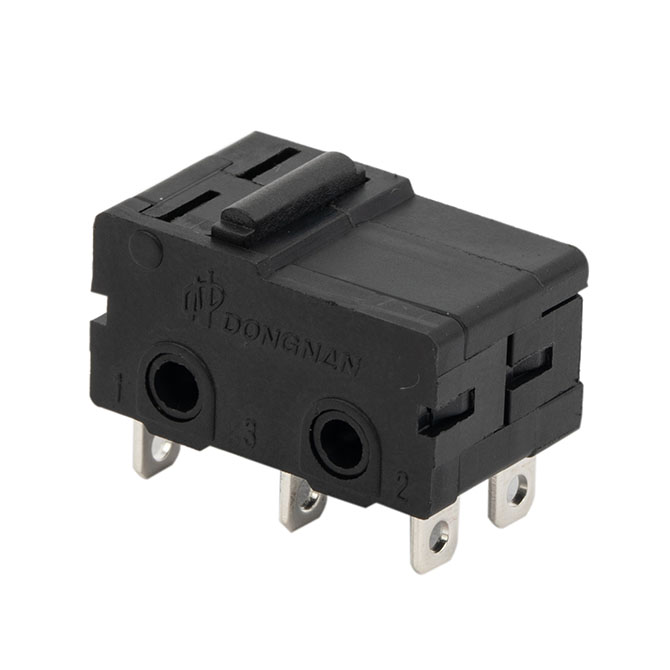

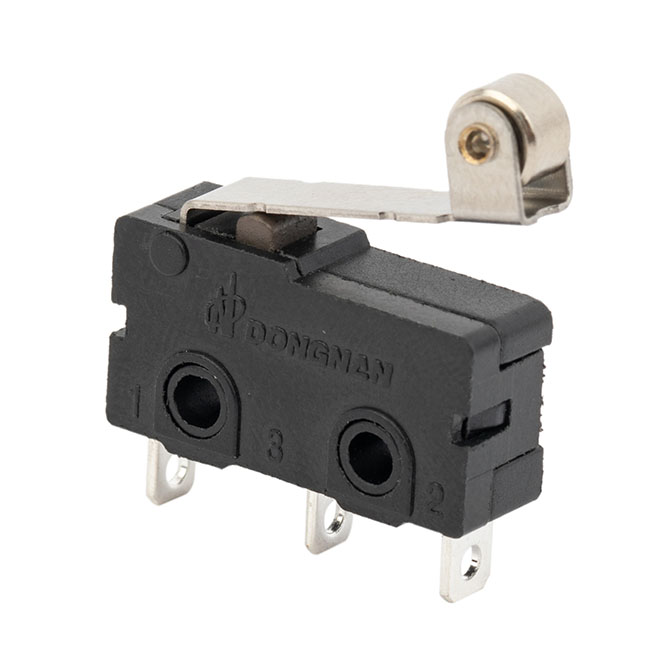

KW4A(S)-Z0F
KW4A(S)-Z1F

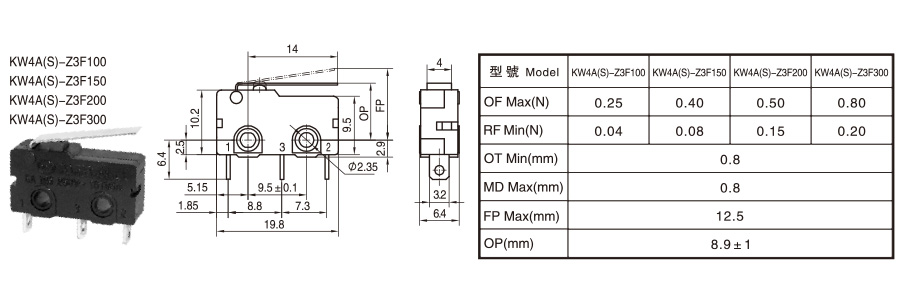

KW4A(S)-Z3F

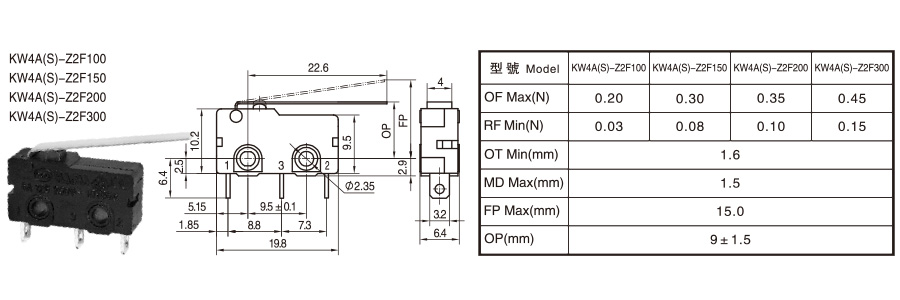

KW4A(S)-Z2F

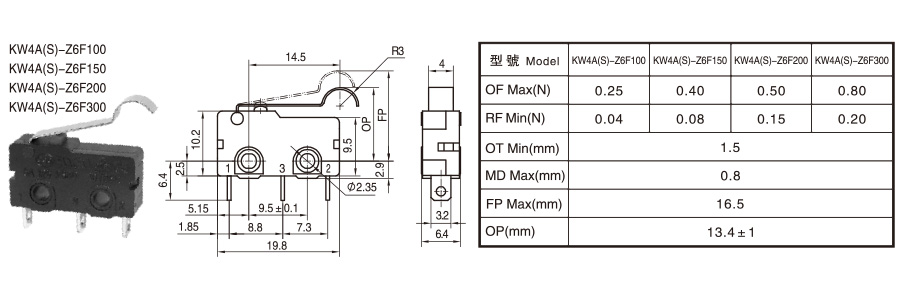

KW4A(S)-Z6F

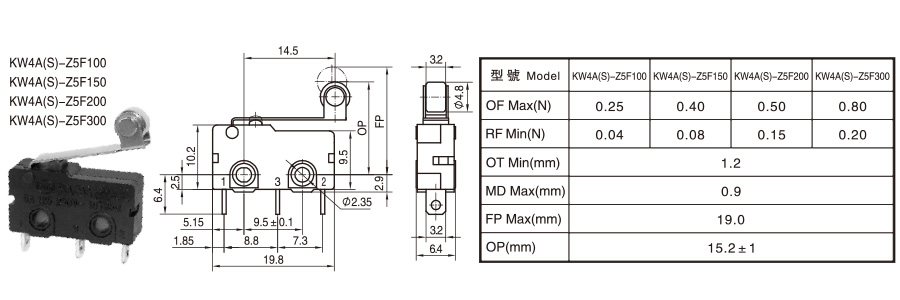

KW4A(S)-Z5F

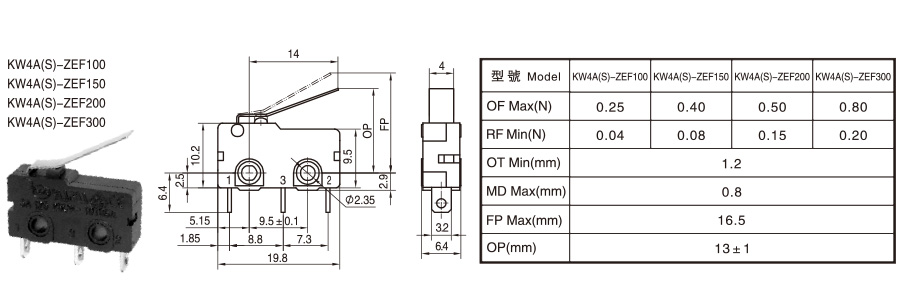

KW4A(S)-ZEF

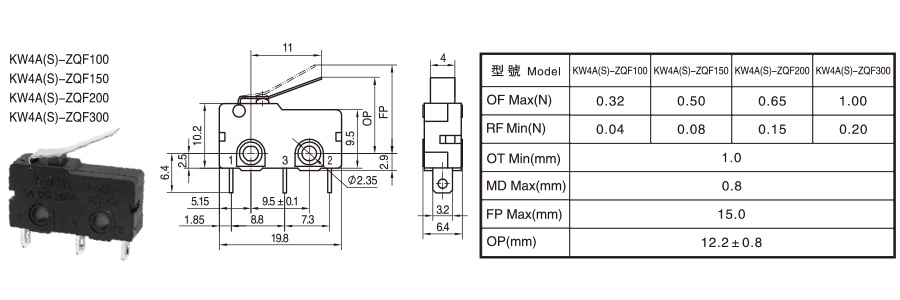

KW4A(S)-ZQF

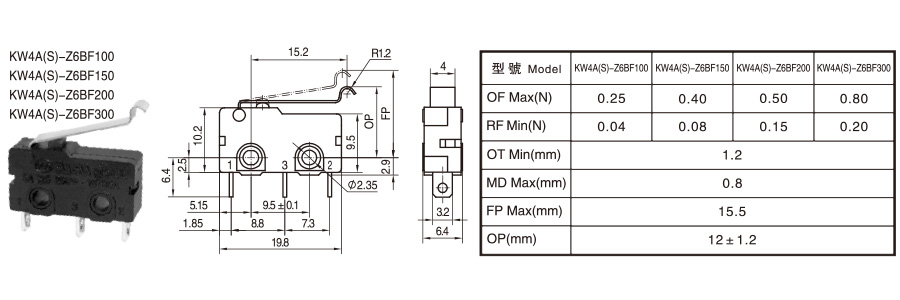

KW4A(S)-Z6BF
KW4A(S)-Z0F

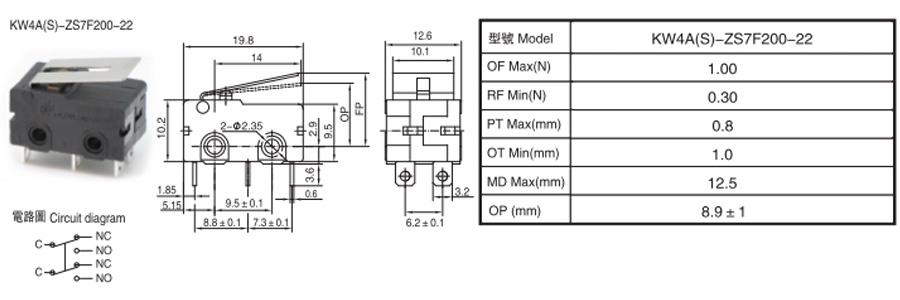

KW4A(S)-ZS7F

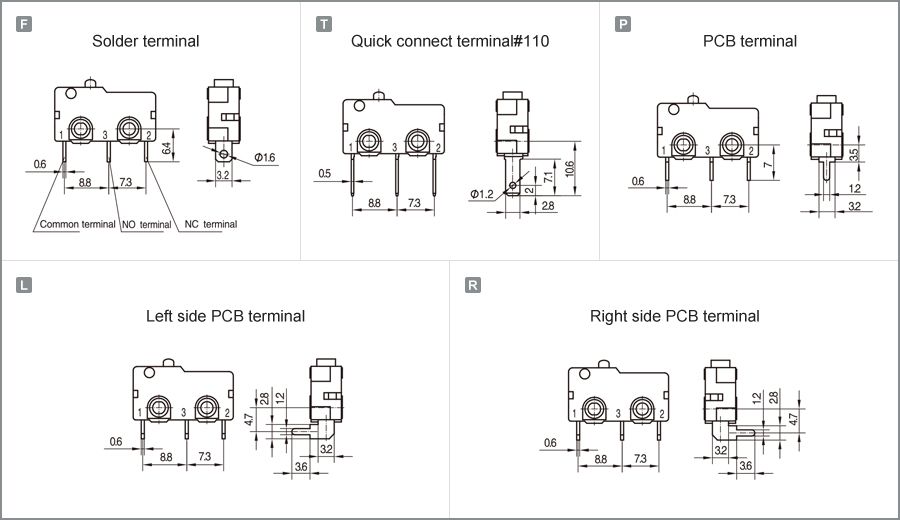

Terminal dimensions

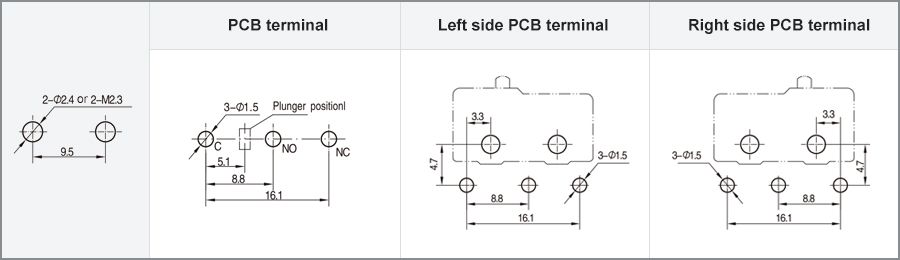

Mounting hole dimension
