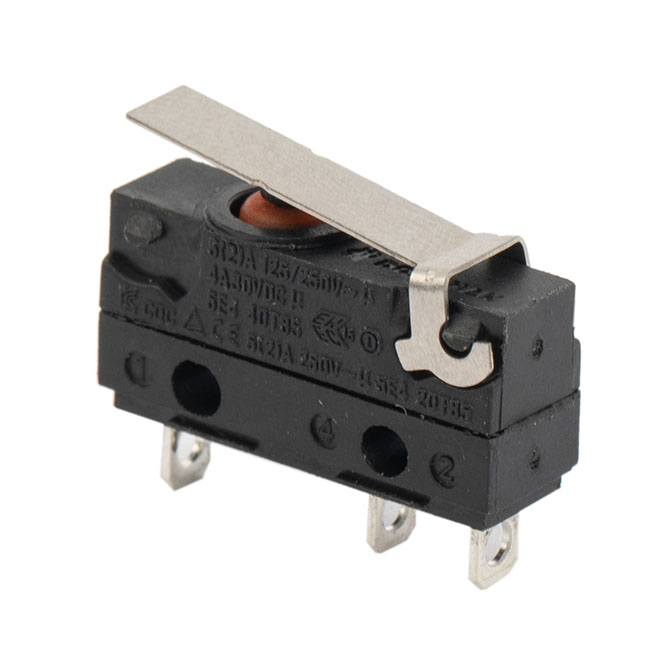

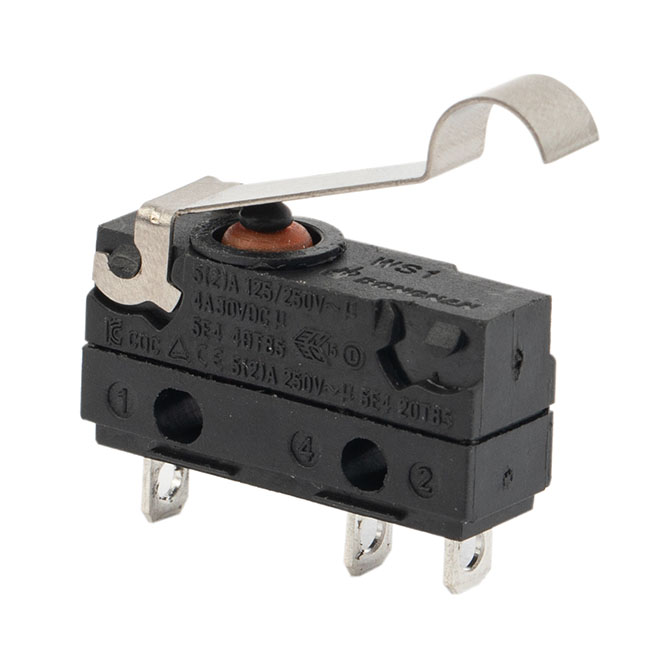

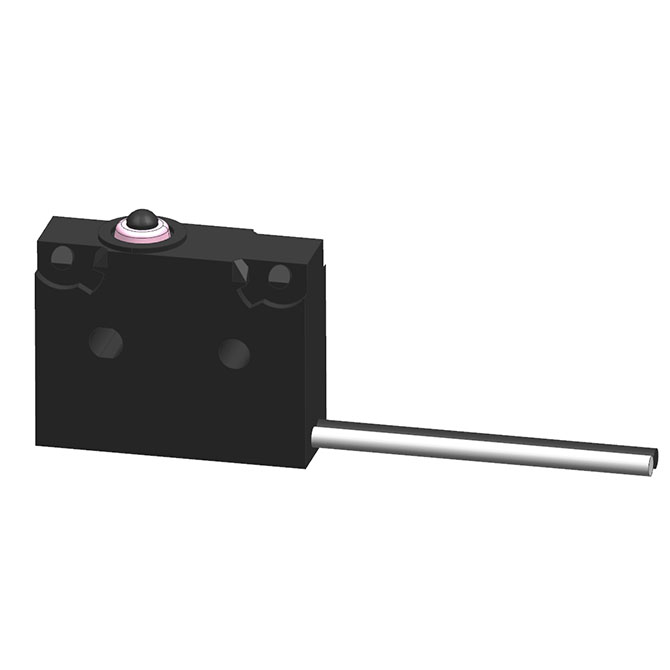

WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series
WS1 Waterproof Switch Series

WS1 Waterproof Switch Series

  • Operating Speed: 0.1mm~1m/s (No lever)

  • Operating Frequency: Mechanical 60 cycles/min; Electrical 25 cycles/min

  • Insulation Resistance: ≥100mΩ(500VDC)

  • Mechanical Life: ≥2,000,000 cycles

  • Electrical Life: ≥50,000 cycles

  • Safely Approvals: UL, CUL, CE, ENEC, DEMKO, EK, CQC

  • Application: Outdoor equipments such as automobiles, vending machine, refrigerator, ice machine, bath equipment, wa ter heater and air-conditioner etc.

Note: To learn more parameters, please go to the details area below to download the parameter document.

KC

KC

CE

CE

ENEC

ENEC

ROSH

ROHS

UL

UL

TUV

TUV

Product Details

Characteristics and usage

  • 1. To be stably sealed by sealed rubber ring and epoxy resin. Can be used in wet or dusty places.
  • 2. A variety of contact terminals, provide with a variety kinds of wires.
  • 3. A variety of levers.
  • 4. Can be used in environmental resistant requirements application, outdoor equipments such as automobiles, vending machine, refrigerator, ice machine, bath equipment, wa ter heater and air-conditioner etc.

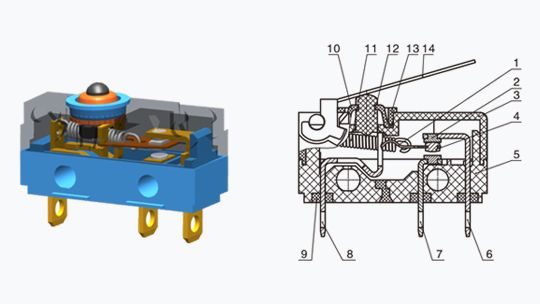

Internal configuration drawing

  • 1. Moving piece
  • 2. Contact
  • 3. Cover
  • 4. Contact
  • 5. Case
  • 6. NC terminal
  • 7. NO terminal
  • 8. Support
  • 9. Epoxy resin
  • 10. Hermetic loop
  • 11. Pull spring
  • 12. Plunger
  • 13. Clasp ring
  • 14. Lever

Technical characteristics

ItemValue
Operating Speed0.1mm~1m/s (No lever)
Operating FrequencyMechanical 60 cycles/min; Electrical 25 cycles/min
Insulation Resistance≥100mΩ(500VDC)
Contact ResistanceTerminal type≤50mΩ
Wire type≤100mΩ
Test Voltage - Between terminals of the same polarityAC1000V, 50/60Hz, 1min
Test Voltage - Between current-carrying metal parts and ground(case), and between terminal and non-current-carrying metal partsAC1500V, 50/60Hz, 1min
Vibration Resistance10~55Hz, 1.5mm double amplitude
Shock ResistanceEndurance: 1000m/s² (approx.100G) max
Worng action: 300/s² (approx.30G) max
Electric shock proof protection degreeⅠ class
Case protection degreeIEC IP67(Except terminal part of terminal type)
LifeMechanical≥2,000,000 cycles
Electrical≥50,000 cycles
Safely ApprovalsUL, CUL, CE, ENEC, DEMKO, EK, CQC

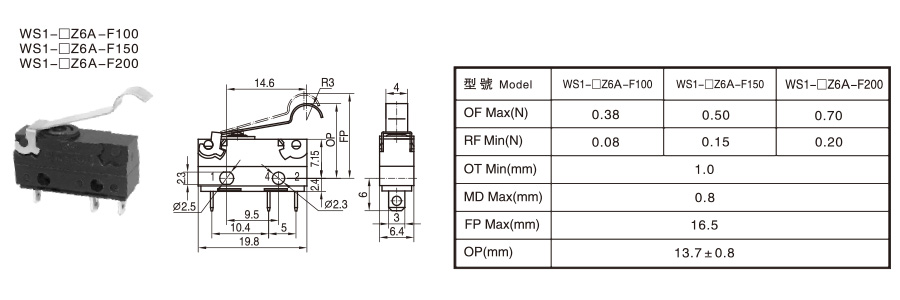

Various model combinations

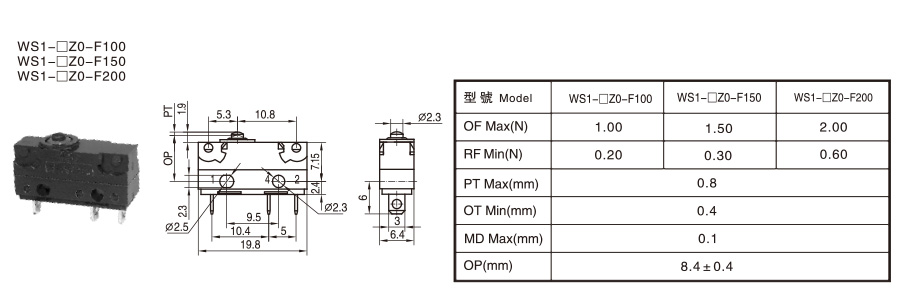

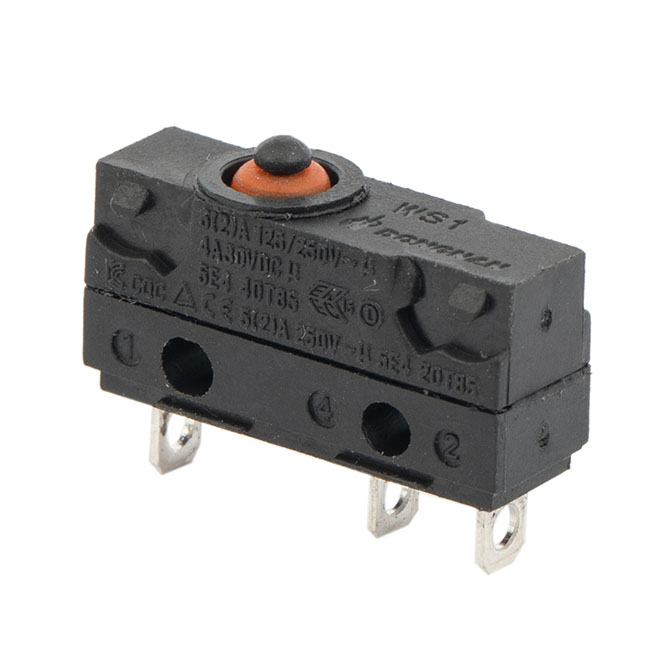

WS1-Z0

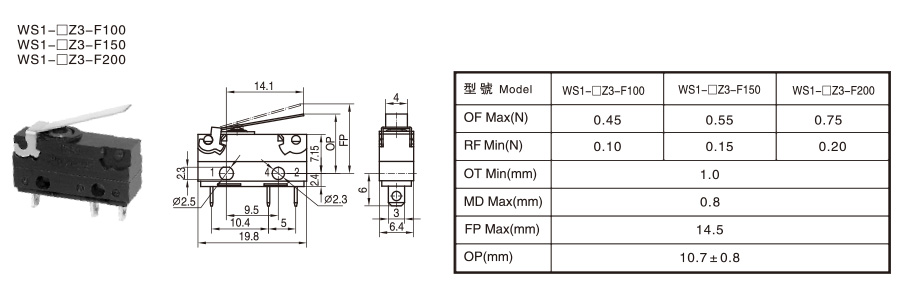

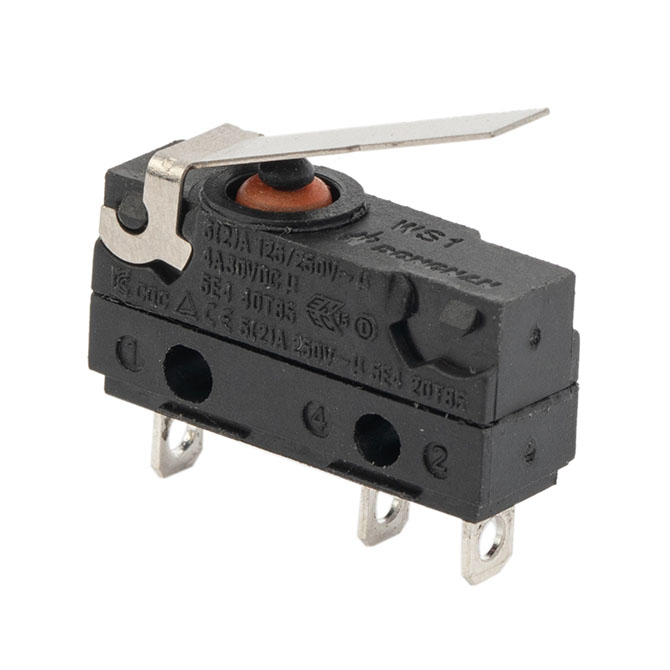

WS1-Z3

WS1-Z6

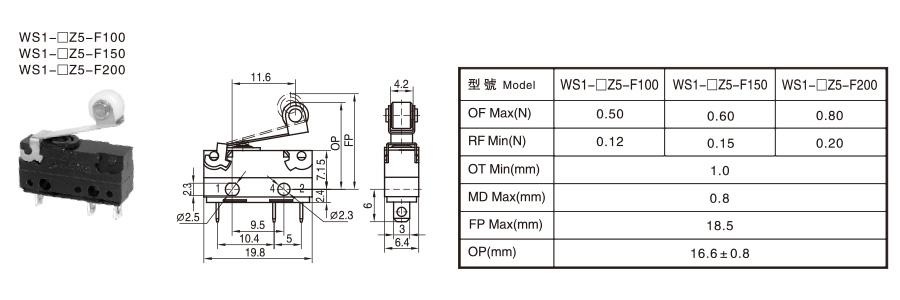

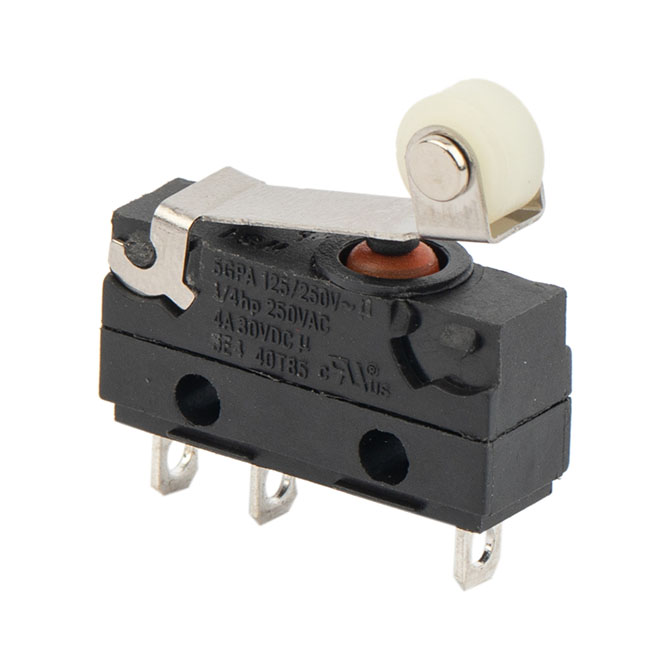

WS1-Z5

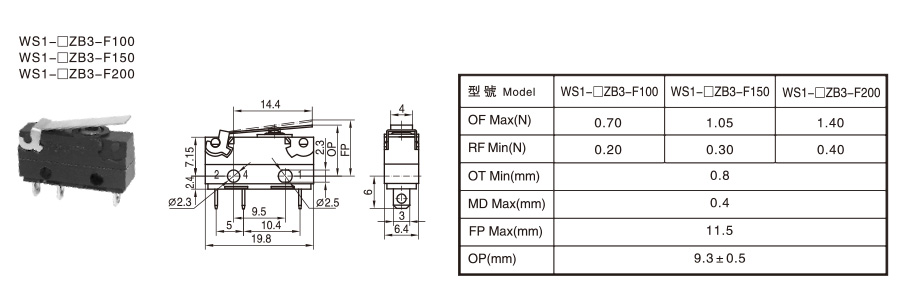

WS1-ZB3

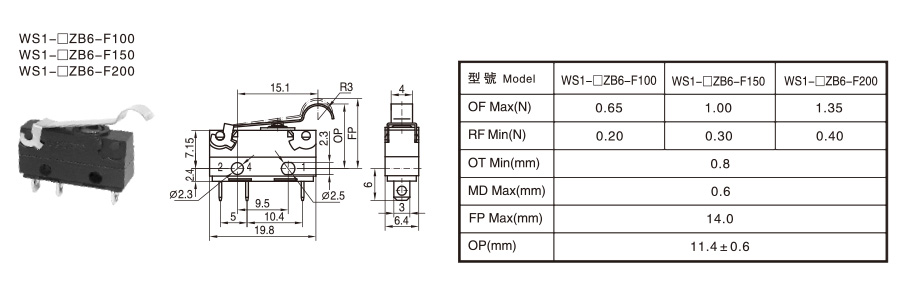

WS1-ZB6

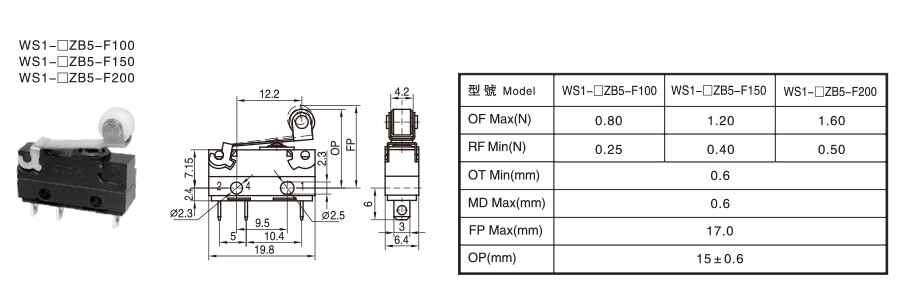

WS1-ZB5

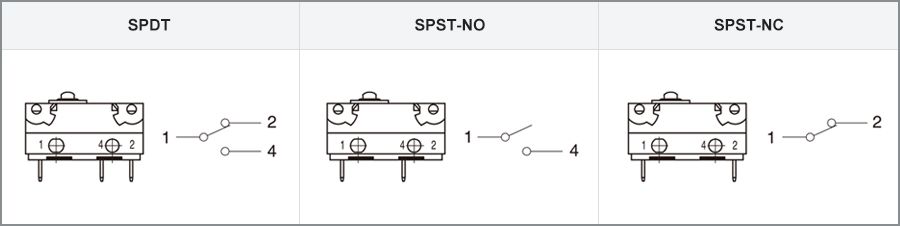

Circuit illustration

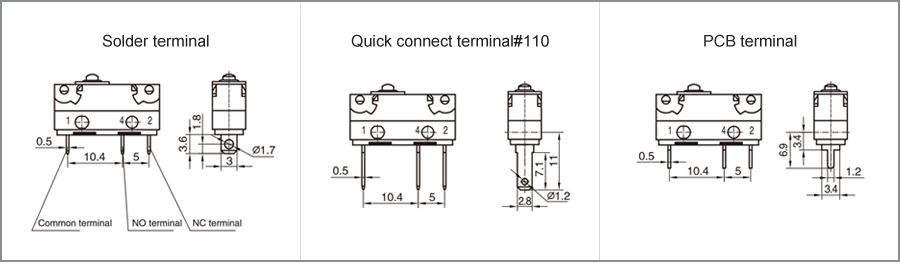

Terminal dimensions
