WS5 Waterproof Switch Series
WS5 Waterproof Switch Series
WS5 Waterproof Switch Series
WS5 Waterproof Switch Series
WS5 Waterproof Switch Series
WS5 Waterproof Switch Series

WS5 Waterproof Switch Series

  • Operating Speed: 0.1mm~1m/s (No lever)

  • Operating Frequency: Mechanical 60 cycles/min; Electrical 25 cycles/min

  • Insulation Resistance: ≥100mΩ(500VDC)

  • Mechanical Life: ≥500,000 cycles

  • Electrical Life: ≥100,000 cycles

  • Safely Approvals: UL/CUL, TUV, CE, CQC

  • Application: Outdoor equipments such as automobile, home appliances, industrial control equipment etc.

Note: To learn more parameters, please go to the details area below to download the parameter document.

KC

KC

CE

CE

ENEC

ENEC

ROSH

ROHS

UL

UL

TUV

TUV

Product Details

Characteristics and usage

  • 1. Small size, compact structure, long travel, dustproof, waterproof.
  • 2. A variety of contact terminals, provide with a variety kinds of wires.
  • 3. A variety of levers.
  • 4. Can be used in environmental resistant requirements application, outdoor equipments such as automobile, home appliances, industrial control equipment etc.

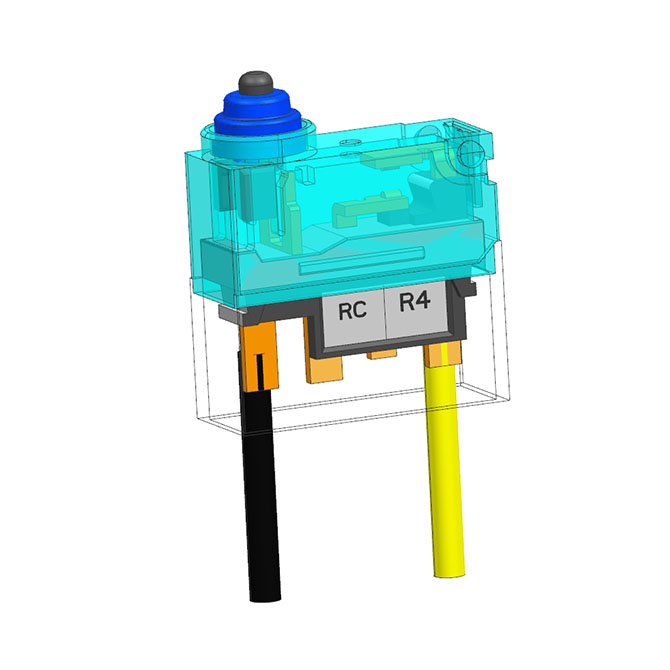

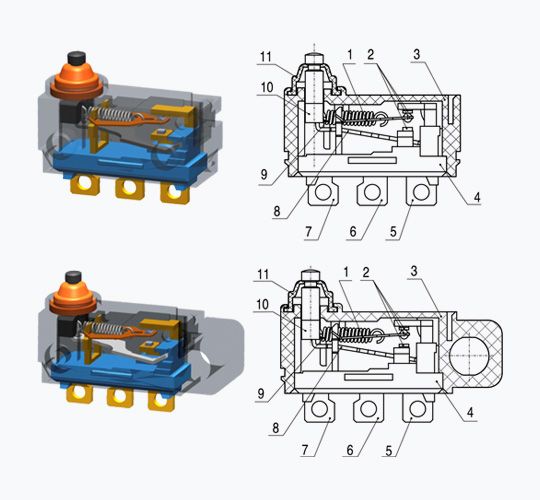

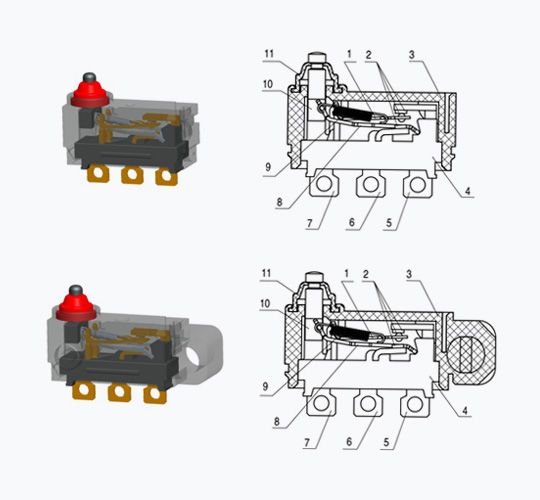

Internal configuration drawing

  • 1. Moving piece
  • 2. Contact
  • 3. Base
  • 4. Case
  • 5. NC terminal
  • 6. NO terminal
  • 7. Support
  • 8. Lever
  • 9. Pull spring
  • 10. Plunger
  • 11. Hermetic loop
  • 1. Moving piece
  • 2. Contact
  • 3. Base
  • 4. Case
  • 5. NC terminal
  • 6. NO terminal
  • 7. Support
  • 8. Lever
  • 9. Pull spring
  • 10. Plunger
  • 11. Hermetic loop

Technical characteristics

ItemValue
Operating Speed0.1mm~1m/s (No lever)
Operating FrequencyMechanical 60 cycles/min; Electrical 25 cycles/min
Insulation Resistance≥100mΩ(500VDC)
Contact ResistanceTerminal type≤50mΩ
Wire type≤100mΩ
Test Voltage - Between terminals of the same polarityAC1000V, 50/60Hz, 1min
Test Voltage - Between current-carrying metal parts and ground(case), and between terminal and non-current-carrying metal partsAC1500V, 50/60Hz, 1min
Vibration Resistance10~55Hz, 1.5mm double amplitude
Shock ResistanceEndurance: 1000m/s² (approx.100G) max
Worng action: 300/s² (approx.30G) max
Electric shock proof protection degreeⅠ class
Case protection degreeIEC IP67(Except terminal part of terminal type) or other degrees
LifeMechanical≥500,000 cycles
Electrical≥100,000 cycles
Safely ApprovalsUL/CUL, TUV, CE, CQC

Various model combinations

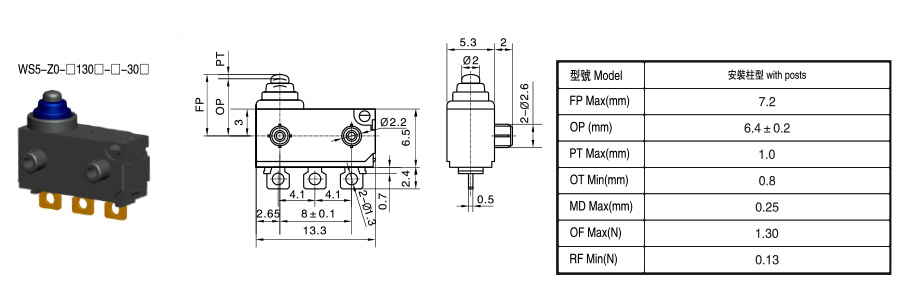

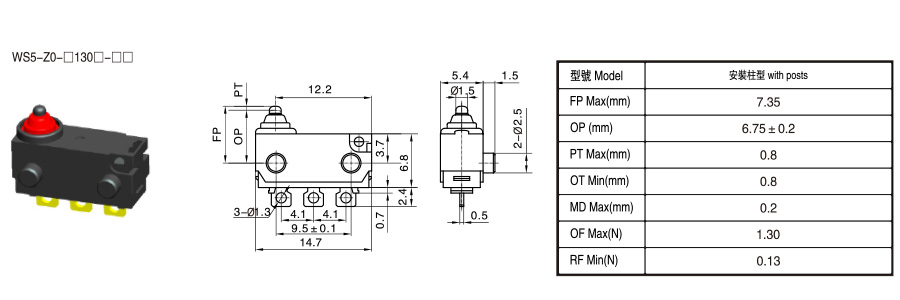

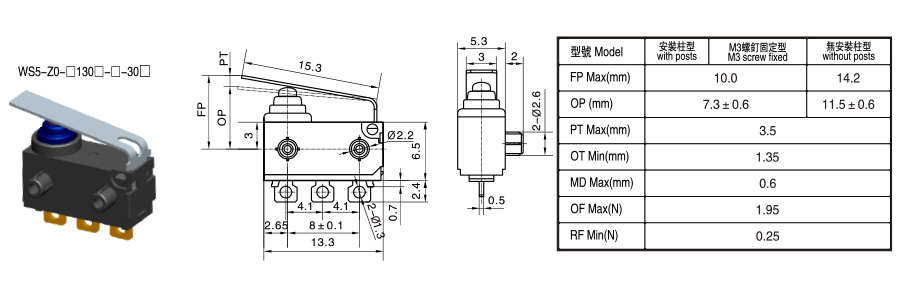

WS5-Z0-130

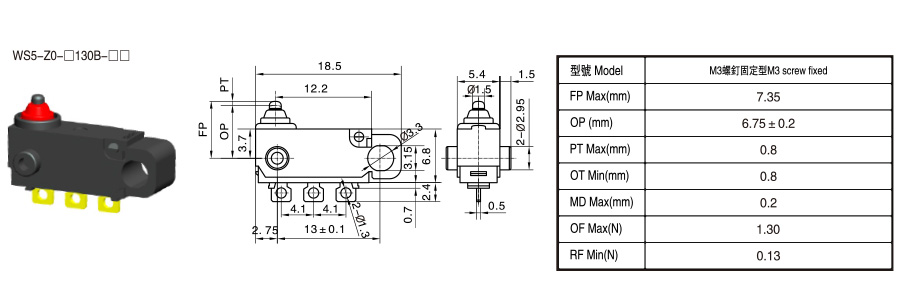

WS5-Z0-130B

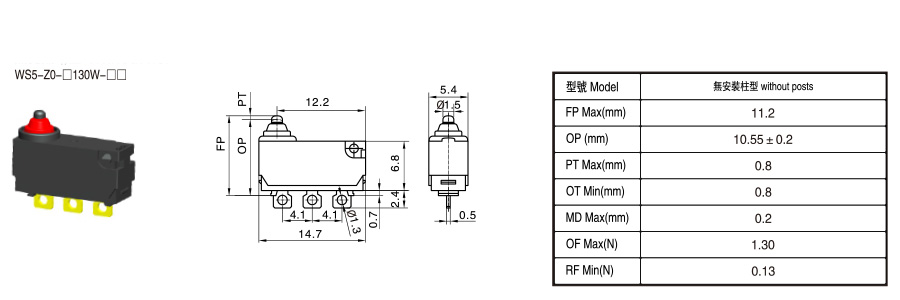

WS5-Z0-130W

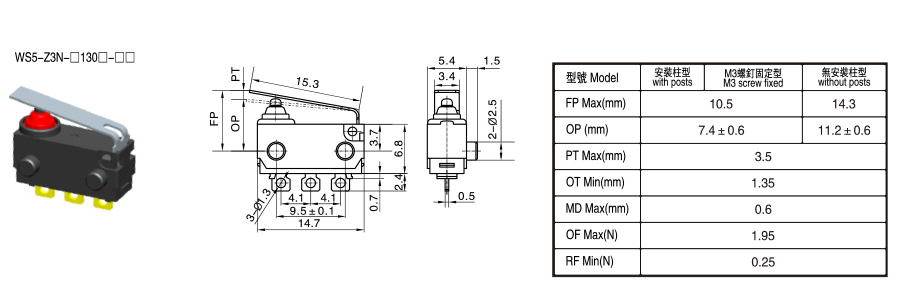

WS5-Z3N

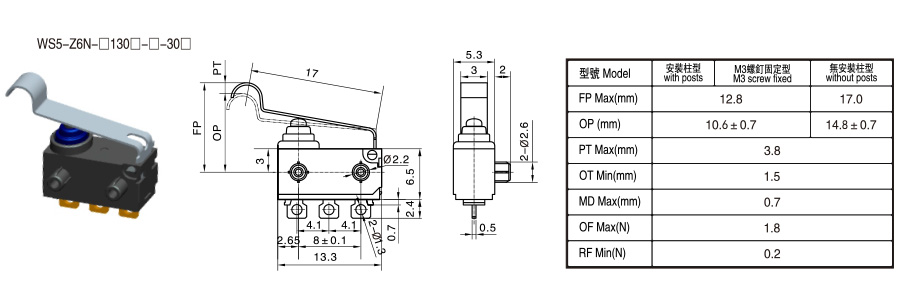

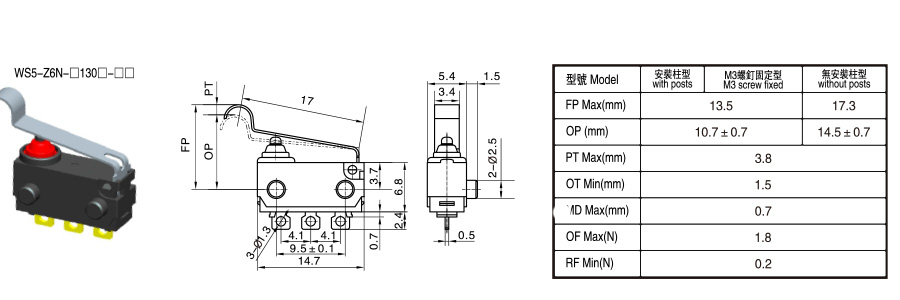

WS5-Z6N

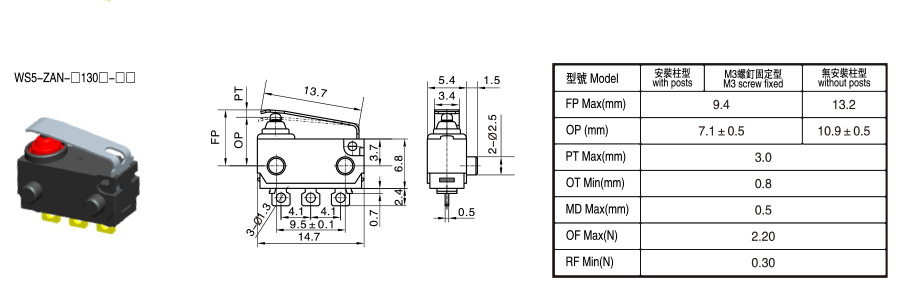

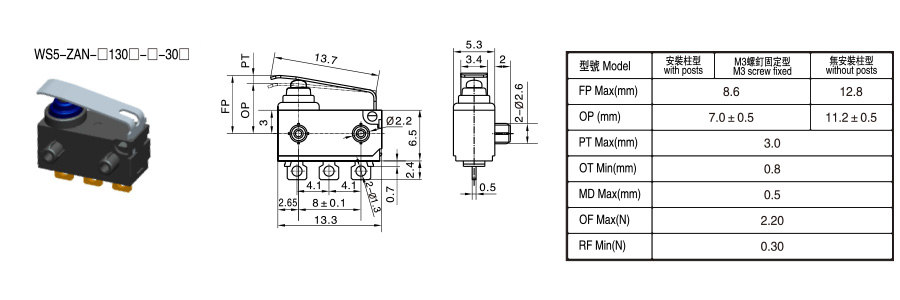

WS5-ZAN

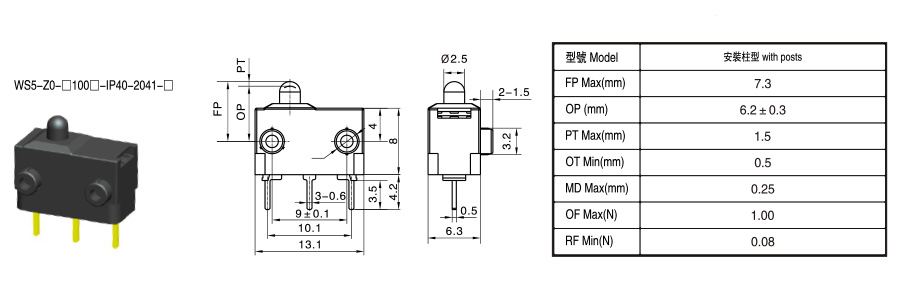

WS5-Z0-100

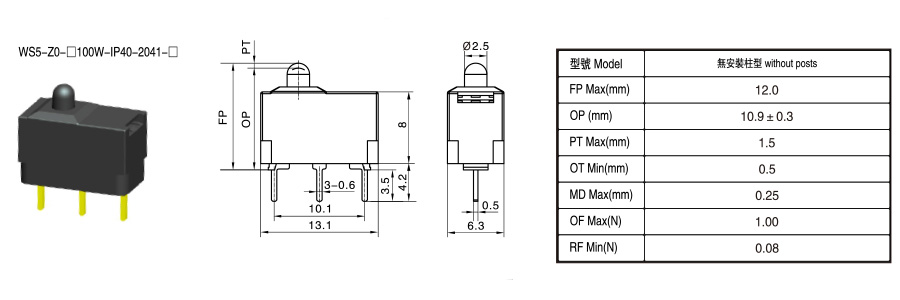

WS5-Z0-100W

WS5-Z0-130

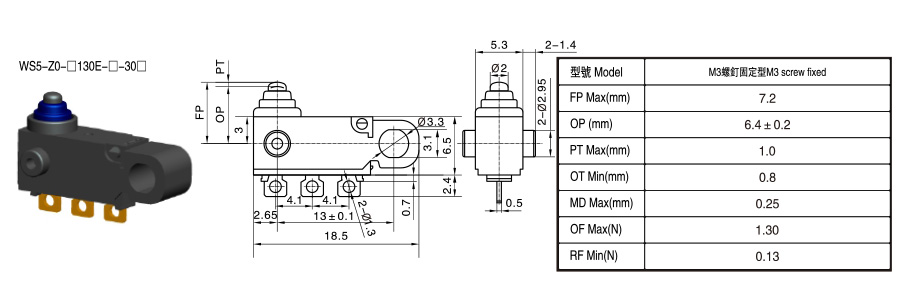

WS5-Z0-130E

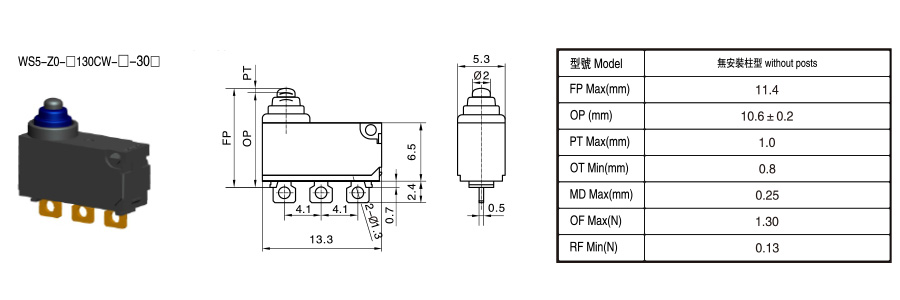

WS5-Z0-130CW

WS5-Z0-130

WS5-Z6N

WS5-ZAN

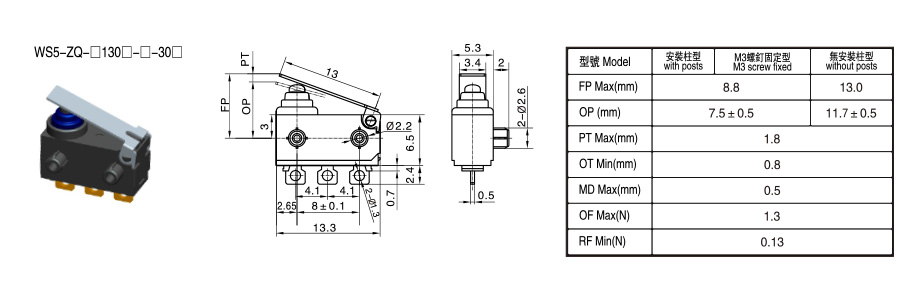

WS5-ZQ

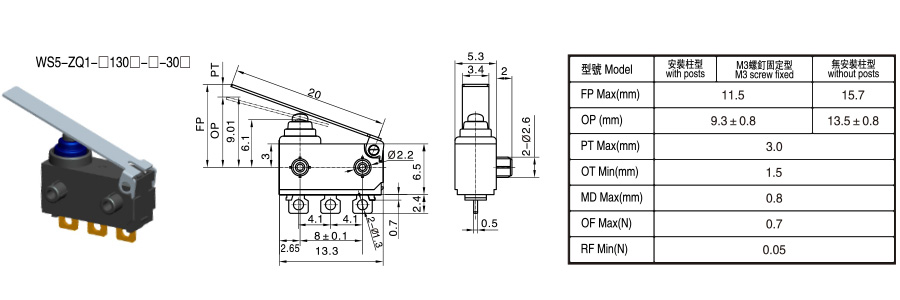

WS5-ZQ1

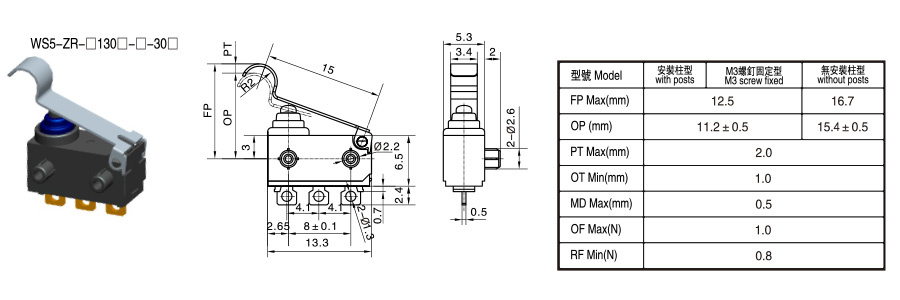

WS5-ZR

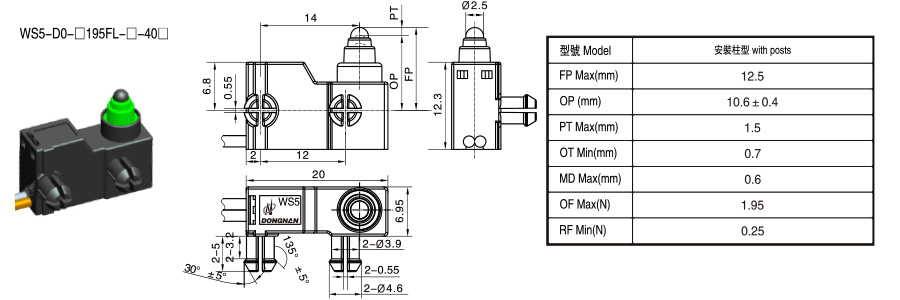

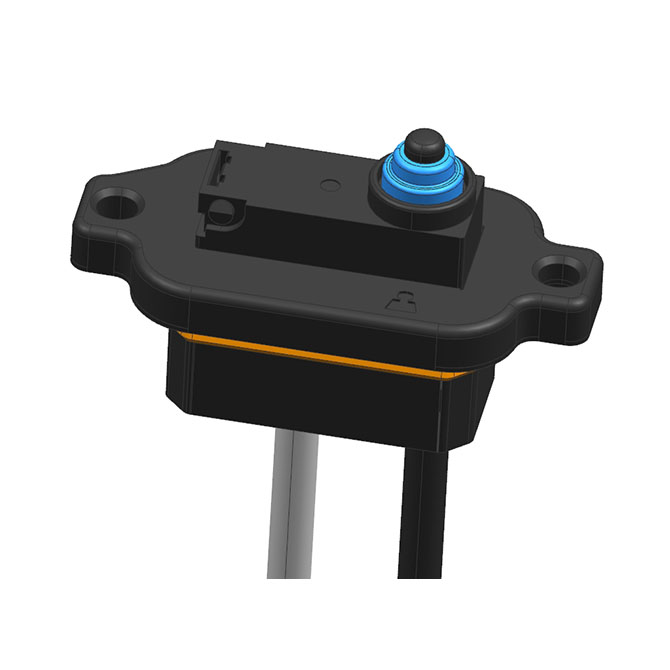

WS5-D0

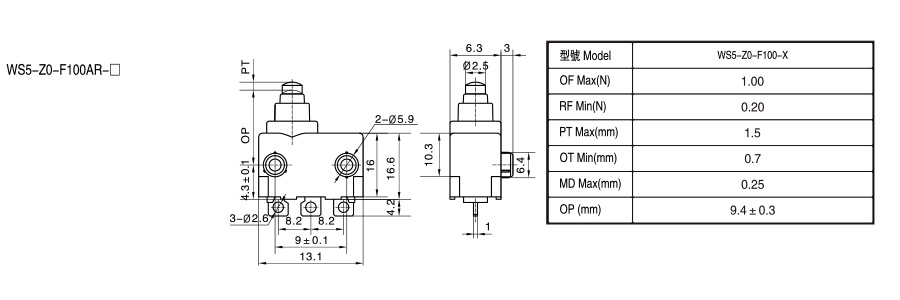

WS5-Z0-F100AR

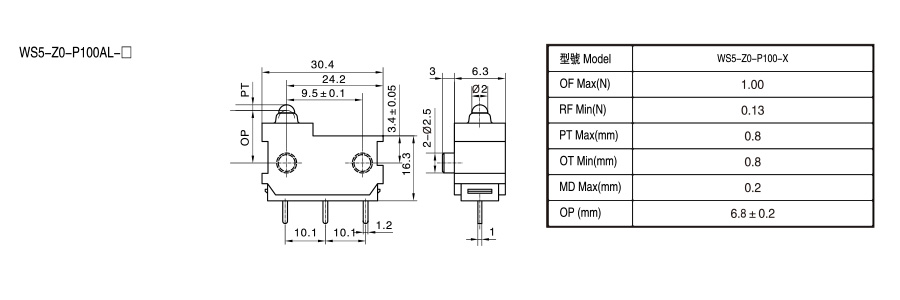

WS5-Z0-P100AL

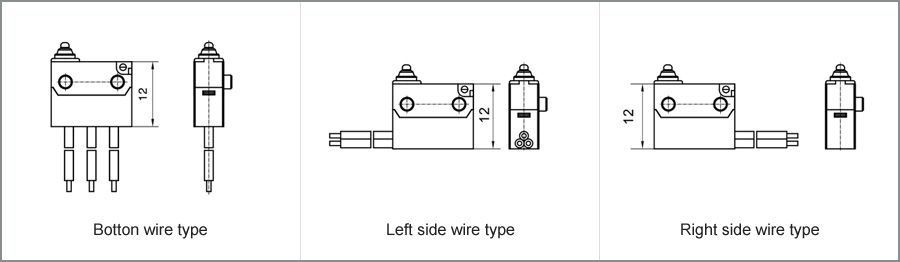

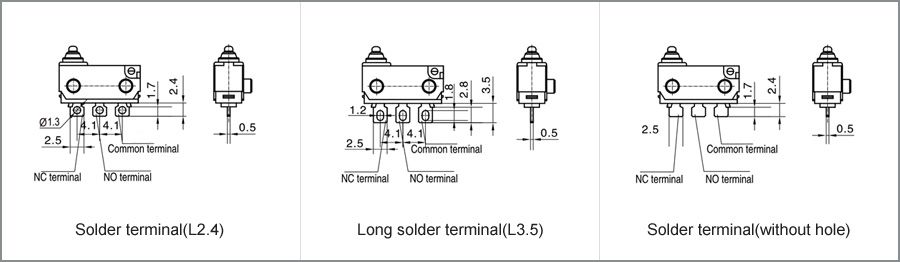

Terminal dimensions
