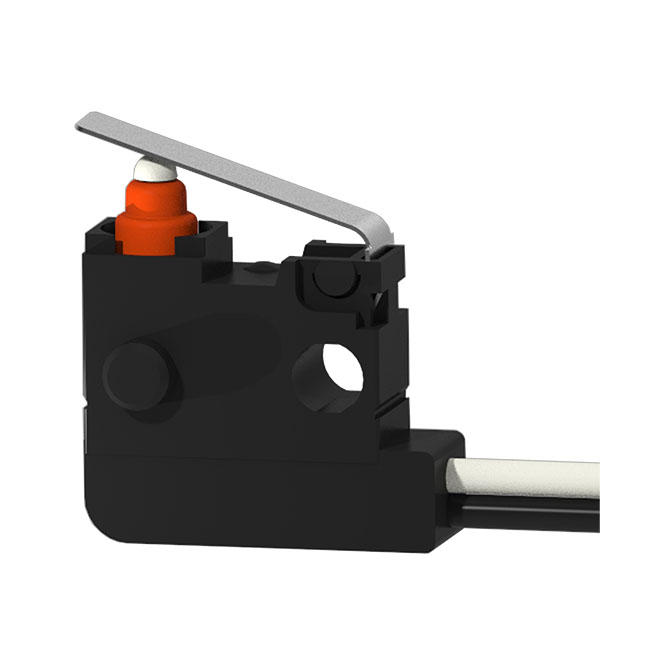

WS6 Waterproof Switch Series
WS6 Waterproof Switch Series
WS6 Waterproof Switch Series
WS6 Waterproof Switch Series

WS6 Waterproof Switch Series

  • Operating Speed: 30mm~600mm/s (No lever)

  • Operating Frequency: Mechanical 60 cycles/min; Electrical 25 cycles/min

  • Insulation Resistance: ≥100mΩ(500VDC)

  • Contact Resistance: ≤500mΩ

  • Vibration Resistance: 10~55Hz, 1.5mm double amplitude

  • Cover protection degree: IEC IP67(Except terminal part of terminal type) Or other degrees

  • Electrical Life: ≥500,000 cycles(1mADC5v, 50mADC16v); ≥200,000 cycles(50mADC 3ov)

  • Application: Automobile, agricultural machine, large home appliances, office equipment etc.

Note: To learn more parameters, please go to the details area below to download the parameter document.

KC

KC

CE

CE

ENEC

ENEC

ROSH

ROHS

UL

UL

TUV

TUV

Product Details

Characteristics and usage

  • 1. To be stably sealed by sealed rubber ring and epoxy resin. Can be used in wet or dusty places.
  • 2. Switch over travel more than 2mm.
  • 3. Mute structure of sliding contact.
  • 4. A variety of contact terminals, provide with a variety of wires.
  • 5. A varity of levers.
  • 6. It can be used in environmental resistant requirements applications such as automobile, agricultural machine, large home appliances, office equipment etc.

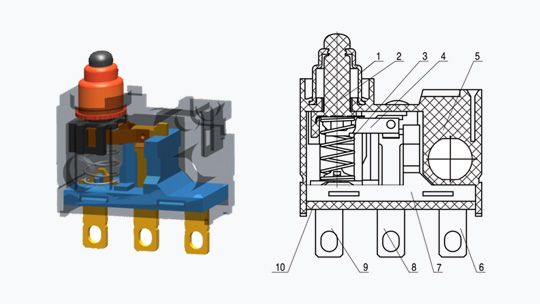

Internal configuration drawing

  • 1. Hermetic loop
  • 2. Plunger
  • 3. Spring
  • 4. Spring sheet
  • 5. Base
  • 6. Nc terminal
  • 7. Case
  • 8. No terminal
  • 9. Support
  • 10. Epoxide resin

Technical characteristics

ItemValue
Environment Temperature-40~+85℃
Operating Speed30mm~600mm/s (No lever)
Operating FrequencyMechanical 60 cycles/min; Electrical 25 cycles/min
Insulation Resistance≥100mΩ(500VDC)
Contact Resistance≤500mΩ
Test Voltage - Between terminals of the same polarityAC600V, 50/60Hz, 1min
Test Voltage - Between current-carrying metal parts and ground(case), and between terminal and non-current-carrying metal partsAC1500V, 50/60Hz, 1min
Vibration Resistance10~55Hz, 1.5mm double amplitude
Shock ResistanceEndurance: 1000m/s² (approx.100G) max
Wrong action: 300/s² (approx.30G) max
Electric shock proof protection degreeⅠ class
Cover protection degreeIEC IP67(Except terminal part of terminal type) Or other degrees
Electrical Life≥500,000 cycles(1mADC5v, 50mADC16v)
≥200,000 cycles(50mADC 3ov)

Various model combinations

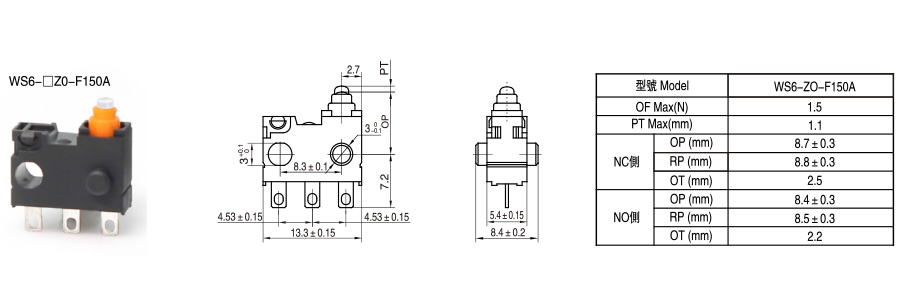

WS6-Z0

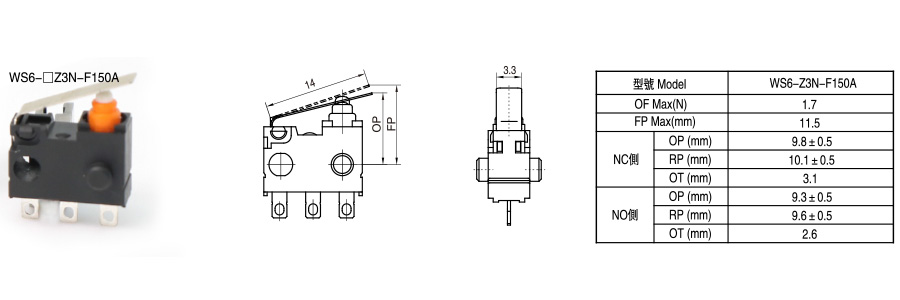

WS6-Z3N

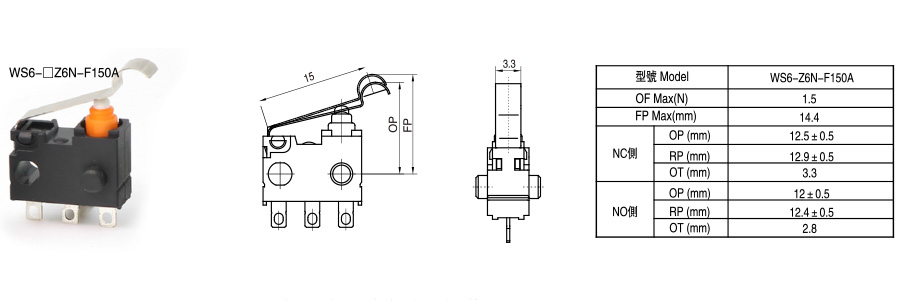

WS6-Z6N

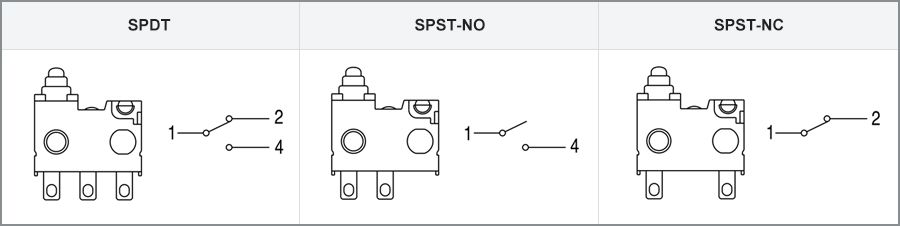

Circuit illustration

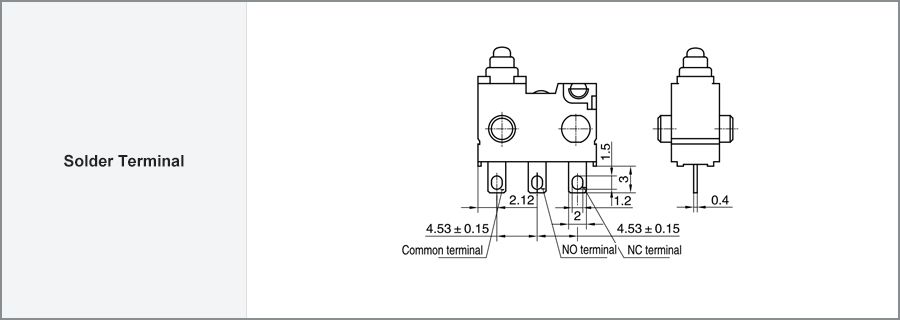

Terminal dimensions

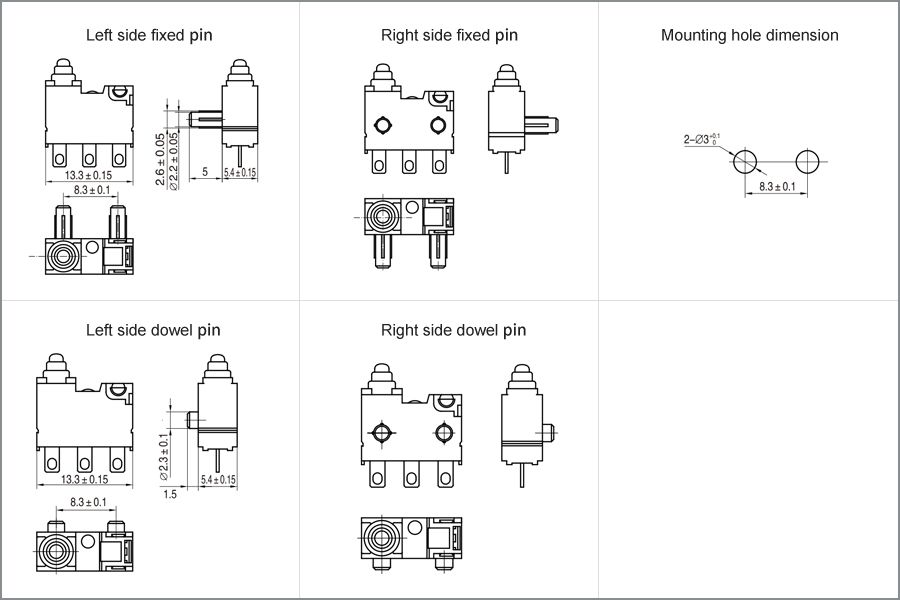

Illustration of cover type and mounting dimension
