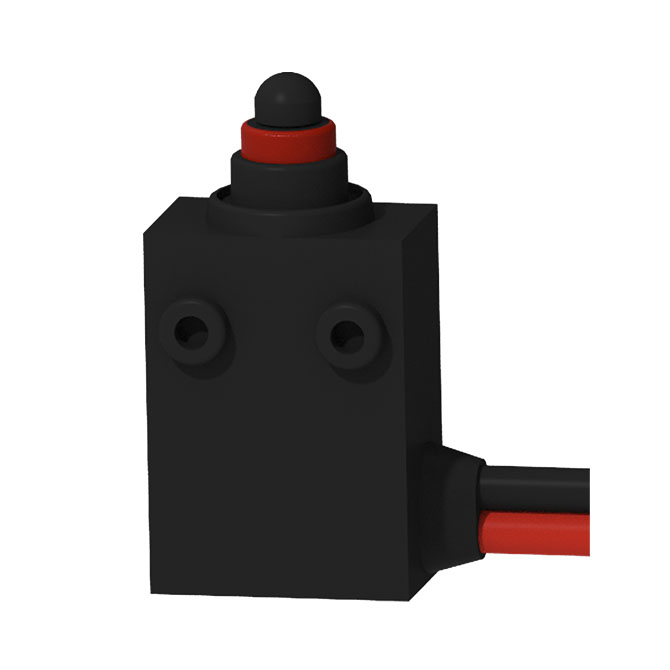

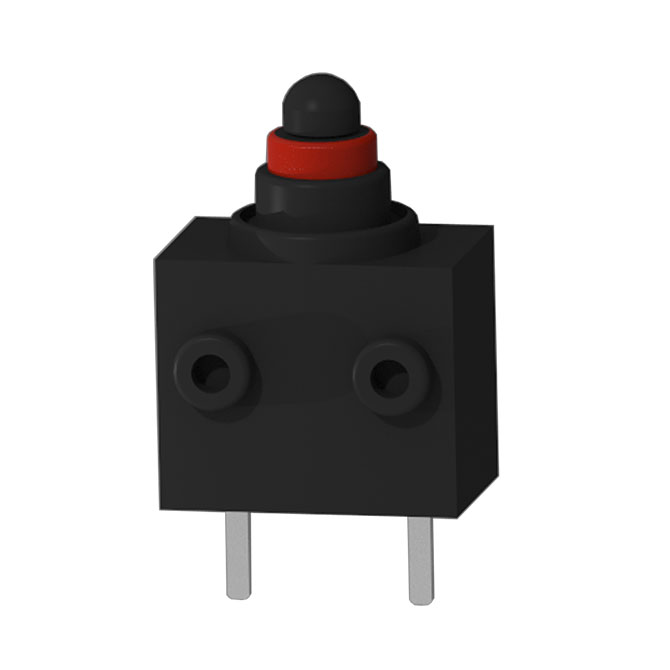

WS8 Waterproof Switch Series
WS8 Waterproof Switch Series
WS8 Waterproof Switch Series
WS8 Waterproof Switch Series
WS8 Waterproof Switch Series
WS8 Waterproof Switch Series

WS8 Waterproof Switch Series

  • Operating Speed: 1mm~500mm/s (No lever)

  • Operating Frequency: Mechanical 60 cycles/min; Electrical 25 cycles/min

  • Insulation Resistance: ≥100mΩ(500VDC)

  • Mechanical Life: ≥300,000 cycles

  • Electrical Life: ≥300,000 cycles

  • Safely Approvals: UL, TUV, CQC

  • Application: Car side doors, trunks, hood and home appliance.

Note: To learn more parameters, please go to the details area below to download the parameter document.

KC

KC

CE

CE

ENEC

ENEC

ROSH

ROHS

UL

UL

TUV

TUV

Product Details

Characteristics and usage

  • 1. Smallest size in micro-switch industry, dustproof, waterproof. Double-sided sliding contact structure, reliable contact, strong impact resistance.
  • 2. The case is equipped with columnless, single side and double side columns to meet different installation requirements.
  • 3. All kinds of wiring terminals can be equipped with wires that meet the load requirements.
  • 4. Can be used in car side doors, trunks, hood and home appliance.

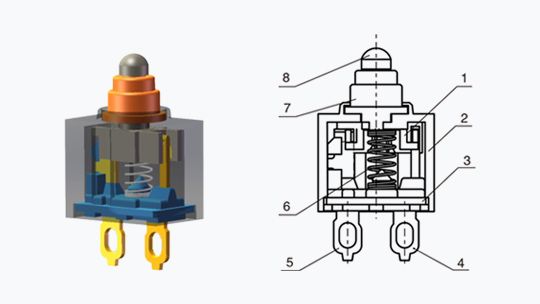

Internal configuration drawing

  • 1. Moving piece
  • 2. Base
  • 3. Case
  • 4. Terminal
  • 5. NO terminal/NC terminal
  • 6. Spring
  • 7. Hermetic loop
  • 8. NO terminal

Technical characteristics

ItemValue
Environment Temperature-45~+85℃
Relative Temperature95%, 40℃
Rating0.1A 12V DC; 50uA 5V Dc
Operating Speed1mm~500mm/s (No lever)
Operating FrequencyMechanical 60 cycles/min; Electrical 25 cycles/min
Insulation Resistance≥100MΩ(500VDC)
Contact Resistance≤50MΩ
Test Voltage - Between terminals of the same polarityAC500V, 50/60Hz, 1min
Test Voltage - Between current-carrying metal parts and ground(case), and between terminal and non-current-carrying metal partsAC500V, 50/60Hz, 1min
Vibration Resistance10~55Hz, 1.5mm double amplitude
Shock ResistanceMin: 294m/s² (30G)
1ms Contact opening max.1 msec.
Electric shock proof protection degreeⅠ class
Case protection degreeIEC IP67(Except exposed terminals)
LifeMechanical≥300,000 cycles
Electrical≥300,000 cycles
Safely ApprovalsUL, TUV, CQC

Various model combinations

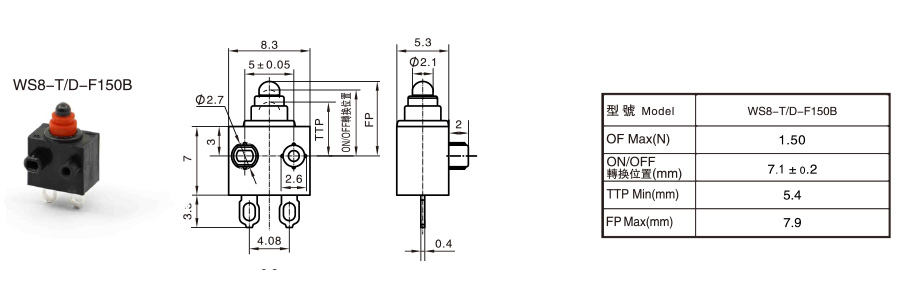

WS8-T/D-F150B

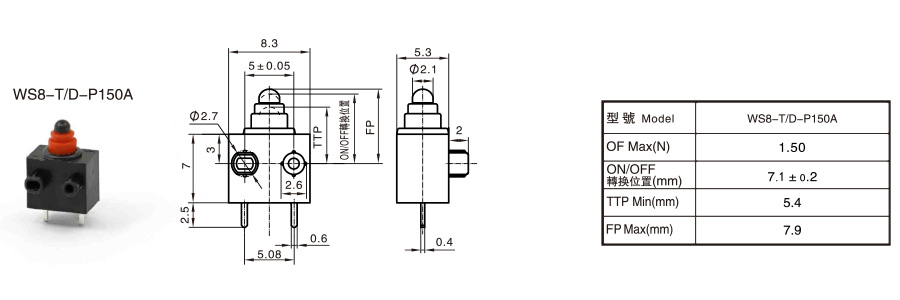

WS8-T/D-P150A

WS8-T/D-A150A

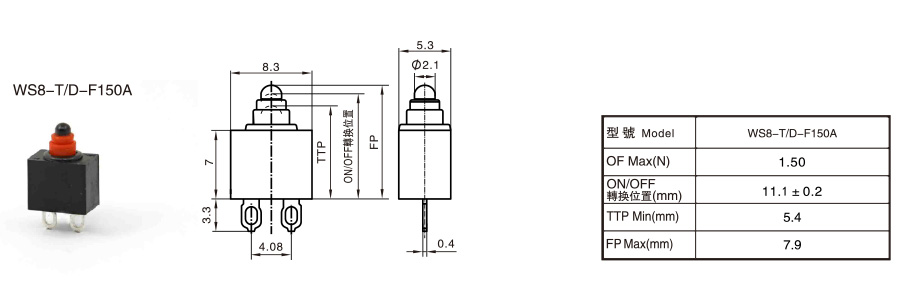

WS8-T/D-F150A

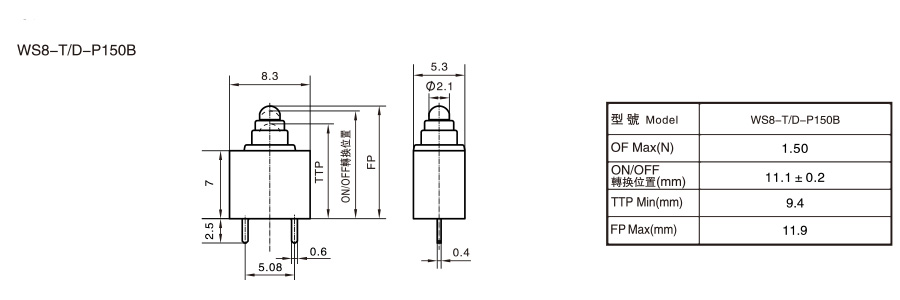

WS8-T/D-P150B

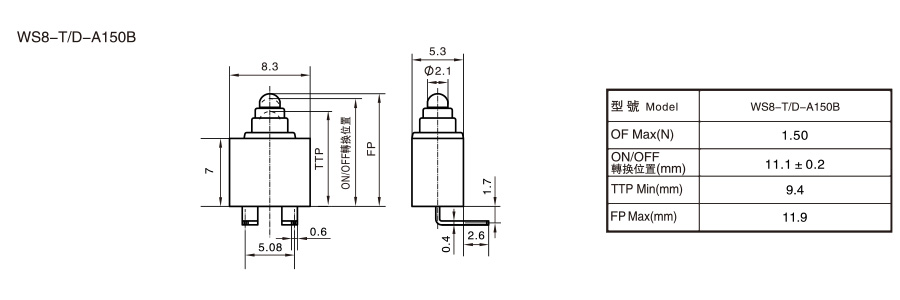

WS8-T/D-A150B

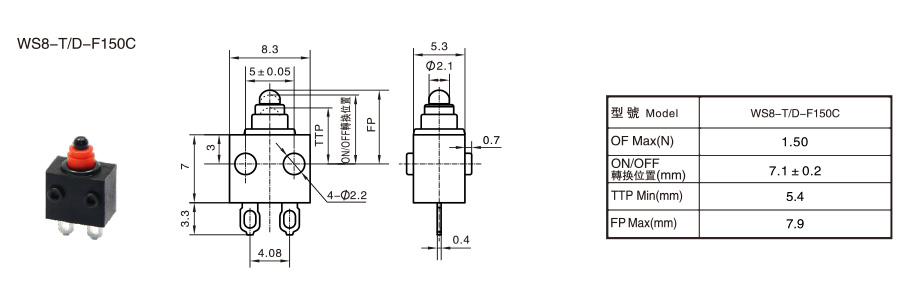

WS8-T/D-F150C

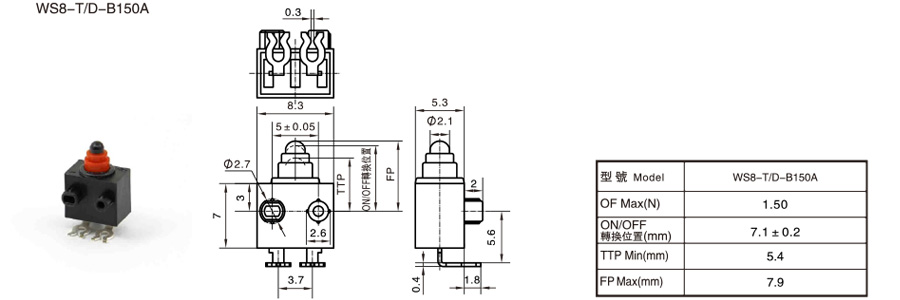

WS8-T/D-B150A

Specifications

RATINGS0.1A 12VDC
TEMPERATURE40T85
ELECTRICAL LIFE300,000 frequency
INSULATION STRENGTH100MQ MIN
TEST VOLTAGE500VAC
CONTACT RESISTANCE(without wire)500mQ MAX
0PERATING FORCE1±0.5N
OPERATING POSITION7.1±0.4m
DEGREE PROTECTION PROVIDED BY ENCLOSUREIEC IP67

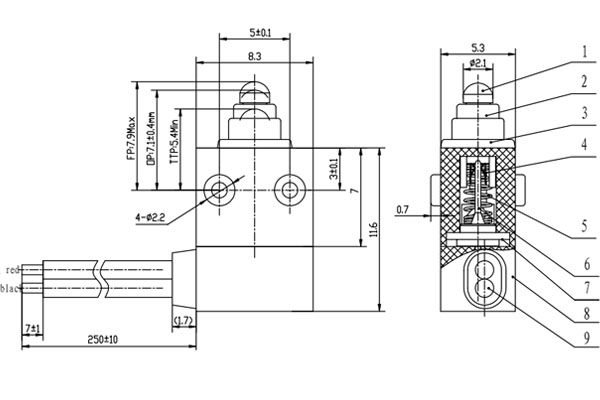

Parts List

  • 1. Plunger: P0M(white)
  • 2. Hermetic seal: Methyl-silicone rubber
  • 3. Cover: Nylon PA66(black)
  • 4. Moving piece: Beryllium bronze
  • 5. Spring: SUIEC IP67S304
  • 6. Terminal: Brass alloy H65, Silver plated
  • 7. CASE: Nylon(black)
  • 8. Hot melt adhesive: Hot melt adhesive
  • 9. lead: PVC insulated Wire 1007-24#

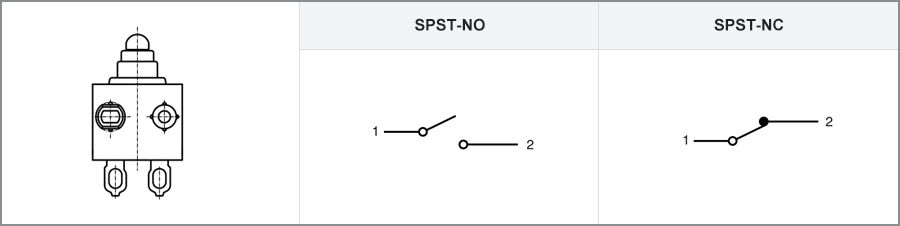

Circuit illustration

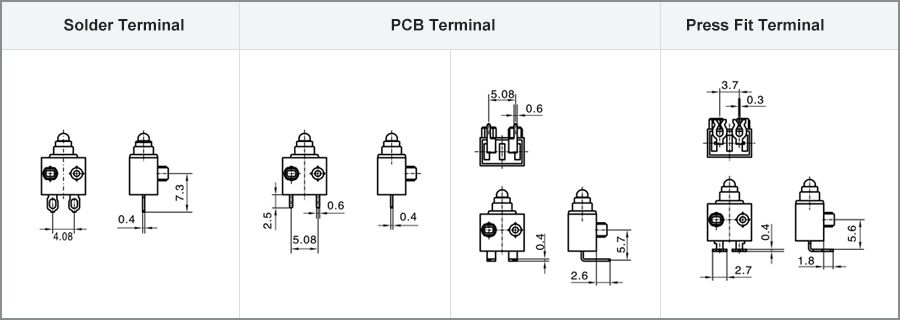

Terminal dimensions
